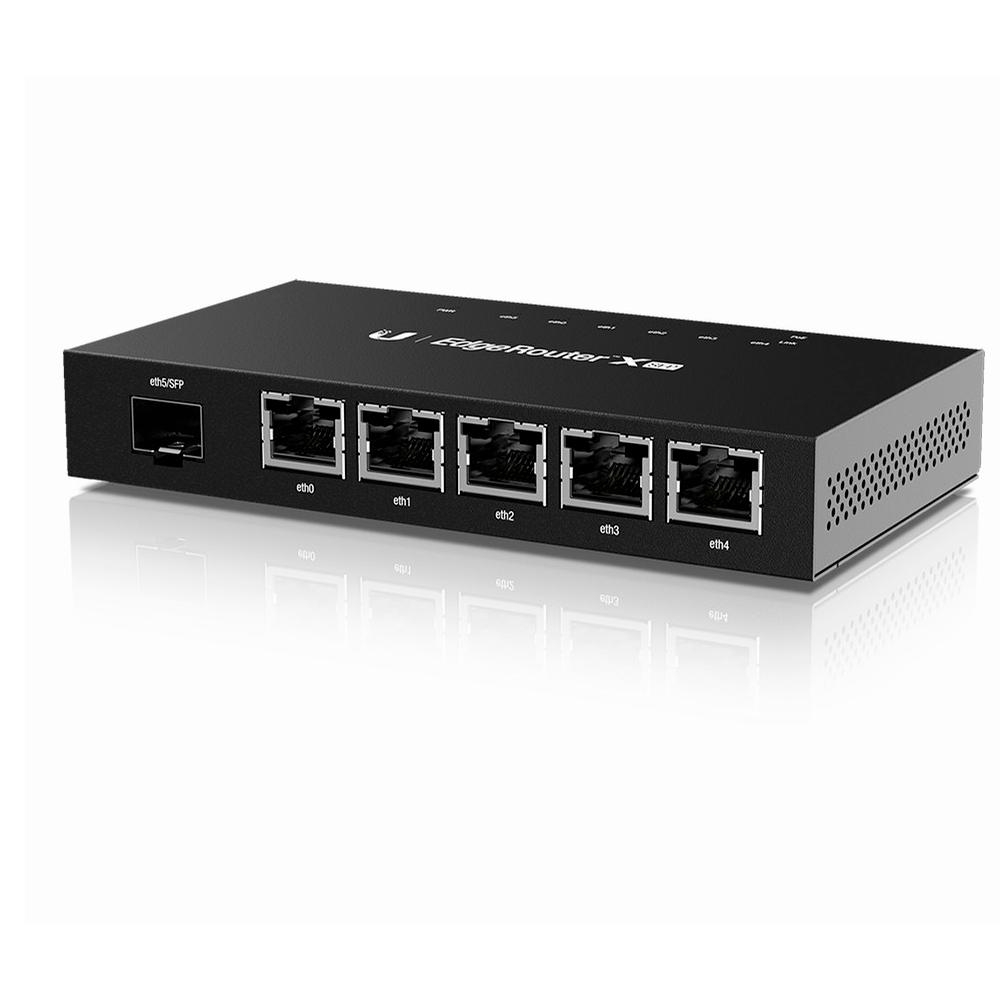

Ubiquiti Networks EdgeRouter X SFP ER-X-SFP 5-Port Advanced Gigabit Router Ethernet with PoE and SFP
Product Highlights
Model#: ER-X-SFP
Sku: IT1433
MSRP: $109.99
In Stock
Your Price: $109.99
Model: ER-X-SFP
Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The EdgeRouter X combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor.
Powered by a proprietary and intuitive graphical interface, EdgeOS™, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
SPECIFICATIONS
Specifications ER-X-SFP
| Dimensions | 142 x 75 x 23 mm (5.59 x 2.95 x 0.91") |
| Weight | 215 g (7.58 oz) |
| Max Power Consumption | 5W |
| Max total PoE Output | 50W @ 24V |
| PoE Output | Passive 24V (Pins 4, 5+; 7, 8- |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Button | Reset |
| LED | Power, Link/Activity (6), PoE (5) |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| System Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Certifications | CE, FCC, IC |
| Wall-Mount | Yes |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Data/PoE Output Port | (5) 10/100/1000 RJ45 Ports |
| Data Port | (1) 100/1000 SFP Port |
| Poe Out Voltage Range | 22-24VDC |
| Max PoE Wattage Per Data/PoE Output Port | 12W (24V) |
| Max PoE Wattage Combined (All Ports) | 50W |
| PoE Method | Passive |
Software Specs
| Interface/Encapsulation | Ethernet 802.1q VLAN PPPoE GRE IP in IP Bridging Bonding (802.3ad) |
| Addressing | Static IPv4/IPv6 Addressing DHCP/DHCPv6 |
| Routing | Static Routes OSPF/OSPFv3 RIP/RIPng BGP (with IPv6 Support) IGMP Proxy |
| Security | ACL-Based Firewall Zone-Based Firewall NAT |
| VPN | IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client |
| Services | DHCP/DHCPv6 Server DHCP/DHCPv6 Relay Dynamic DNS DNS Forwarding VRRP RADIUS Client Web Caching PPPoE Server |
| QoS | FIFO Stochastic Fairness Queueing Random Early Detection Token Bucket Filter Deficit Round Robin Hierarchical Token Bucket Ingress Policing |
| Management | Web UI CLI (SSH, Telnet) SNMP NetFlow LLDP NTP UBNT Discovery Protocol Logging |
