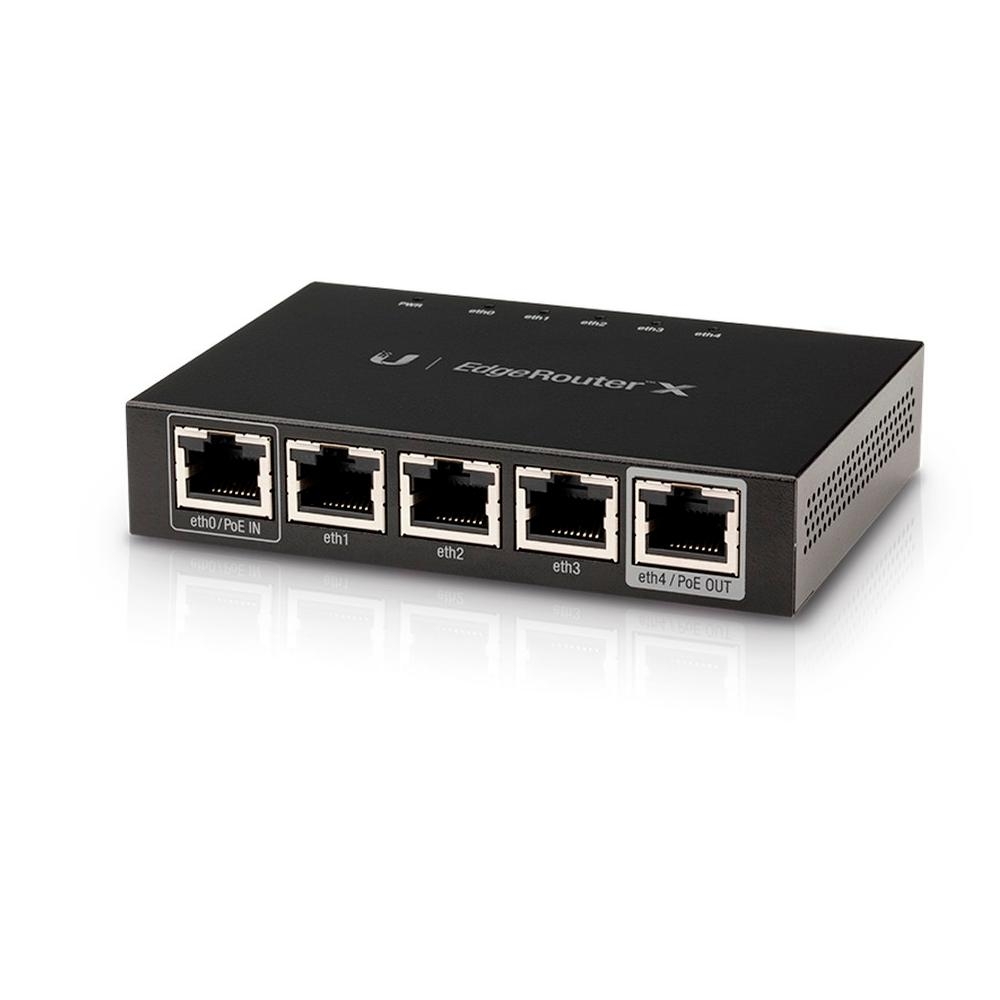

Ubiquiti Networks ER-X EdgeRouter X 5-Port Gigabit PoE

Product Highlights
  • (5) Gigabit RJ45 ports
  • 130 kpps for 64-byte packets
  • 1 Gbps for 1518-byte packets
  • Ports configurable for line-rate, Layer-2 switching
  • Passive PoE passthrough option; Power via 24V passive PoE or power adapter
  • Model#: ER-X

    Sku: IT1428

    MSRP: $67.99

    In Stock

    Your Price: $67.99

    Model: ER-X

    Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The EdgeRouter X combines carrier?class reliability with excellent price?to?performance value in an ultra?compact form factor

    Powered by a proprietary and intuitive graphical interface, EdgeOS™, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.


    Specifications ER-X

    Dimensions 110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
    Weight 175 g (6.17 oz)
    Max Power Consumption 5W
    Max total PoE Output 50W @ 24V
    Power Input 24VDC, 2.5A Power Adapter (Included)
    Power Supply External AC/DC Adapter
    Supported Voltage Range 9 to 26VDC
    Button Reset
    LED Power, Ethernet 0-4
    Processor Dual-Core 880 MHz, MIPS1004Kc
    System Memory 256 MB DDR3 RAM
    Code Storage 256 MB NAND
    Certifications CE, FCC, IC
    Wall-Mount Yes
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -10 to 45° C (14 to 113° F)
    Operating Humidity 10 to 90% Noncondensing
    Data/PoE Output Port (1) 10/100/1000 RJ45 Port
    Data Port (3) 10/100/1000 RJ45 Ports
    Data/PoE Passthrough Port (1) 10/100/1000 RJ45 Port
