Ubiquiti airFiber X antenna AF-5G34-S45 Slant 45 for airfiber 5GHz 34dBi Point to Point PtP Bridge

AF-5G34-S45

Ubiquiti
Ubiquiti Networks airFiber X antenna AF-5G34-S45 Slant 45 for airfiber 5GHz 34dBi Point to Point PtP Bridge


Product Highlights
  • Ubiquiti Networks airFiber X Antenna AF-5G34-S45 Slant 45 Antenna for airFiber
  • The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
  • The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
  • The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.
  • The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.
  • Model#: AF-5G34-S45

    Sku: IT1426.2974.424092



    MSRP: $359.99

    In Stock

    Your Price: $339.00




    Model: AF-5G34-S45

                                          airFiber X antenna

                                                    Slant 45 Antenna for airFiber

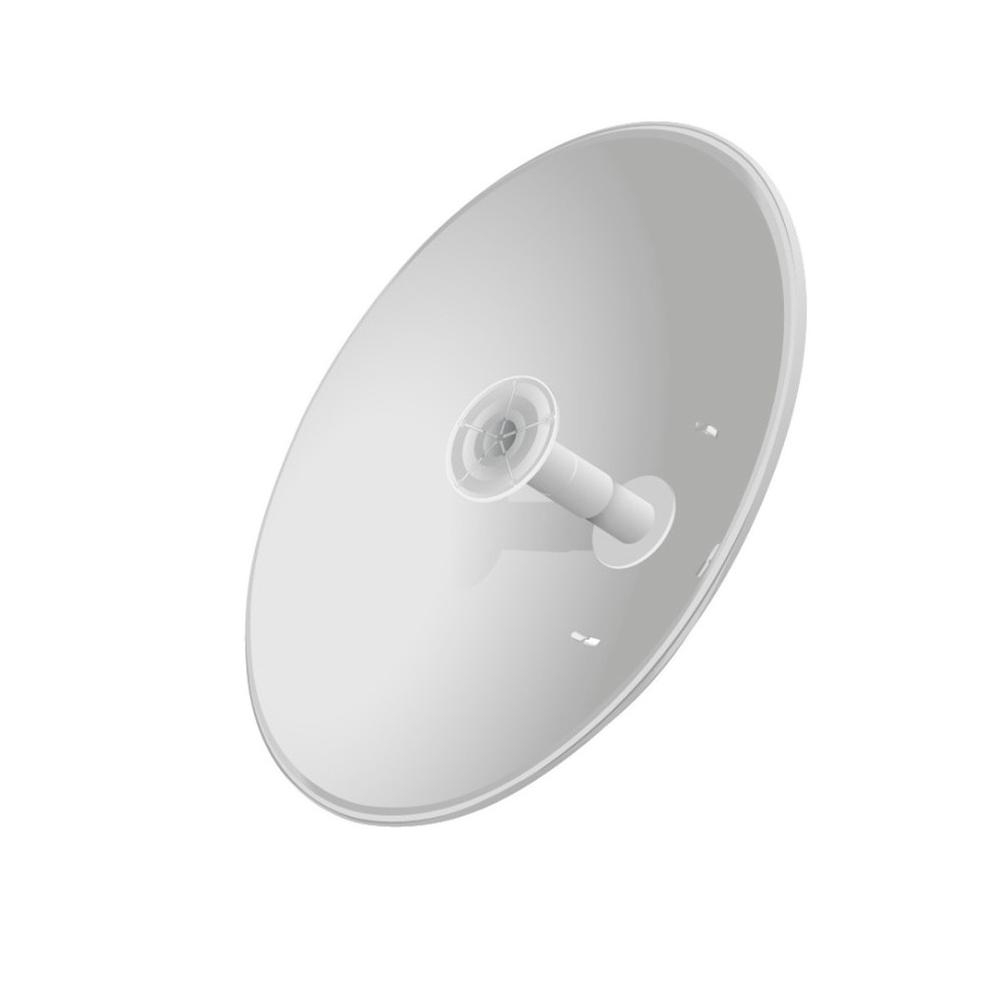

    Ubiquiti Networks AF-5G34-S45 is designed for use with airFiber 5X radios. This 1050mm parabolic antenna features a 34dBi gain and a 45° slant, operating on 5GHz frequencies.

    • Powerful Performance

    The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.

    Carrier-Class Construction

    Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

    • Plug and Play Integration

    airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application

    Specification

    • Dimensions:1050 x 421mm (&dia;41.34 x 16.57")
    • Weight: 13.5kg (29.76lbs)
    • Frequency Range: 5100 - 5800MHz
    • Gain: 34dBi
    • +45° Beamwidth: 3° (3dB)
    • -45° Beamwidth: 3° (3dB)
    • F/B Ratio: 42dB
    • Max. VSWR: 1.4:1
    • Wind Loading: 1779N @ 200km/h (400lbf @ 125mph)
    • Wind Survivability: 200km/h (125mph)
    • Polarization: Dual-Linear
    • Cross-pol Isolation: 35dB Min.
    • ETSI Specification: EN 302 326 DN2
    • Universal Pole Mount, airFiber X Radio Bracket, and Weatherpoof RF Connectors included


    Product Includes:

    • (1) Dish Reflector
    • (1) Antenna Feed
    • (1) Mounting Bracket
    • (1) Protective Shroud
    • (2) Pole Clamps
    • (2) Stabilizer Brackets
    • (2) RF Cables
    • (1) Elevation Rod
    • (4) M12x180 Carriage Bolts
    • (2) M10x100 Bolts
    • (3) M10x25 Carriage Bolts
    • (6) M4 Bolts
    • (1) Quick Start Guide
