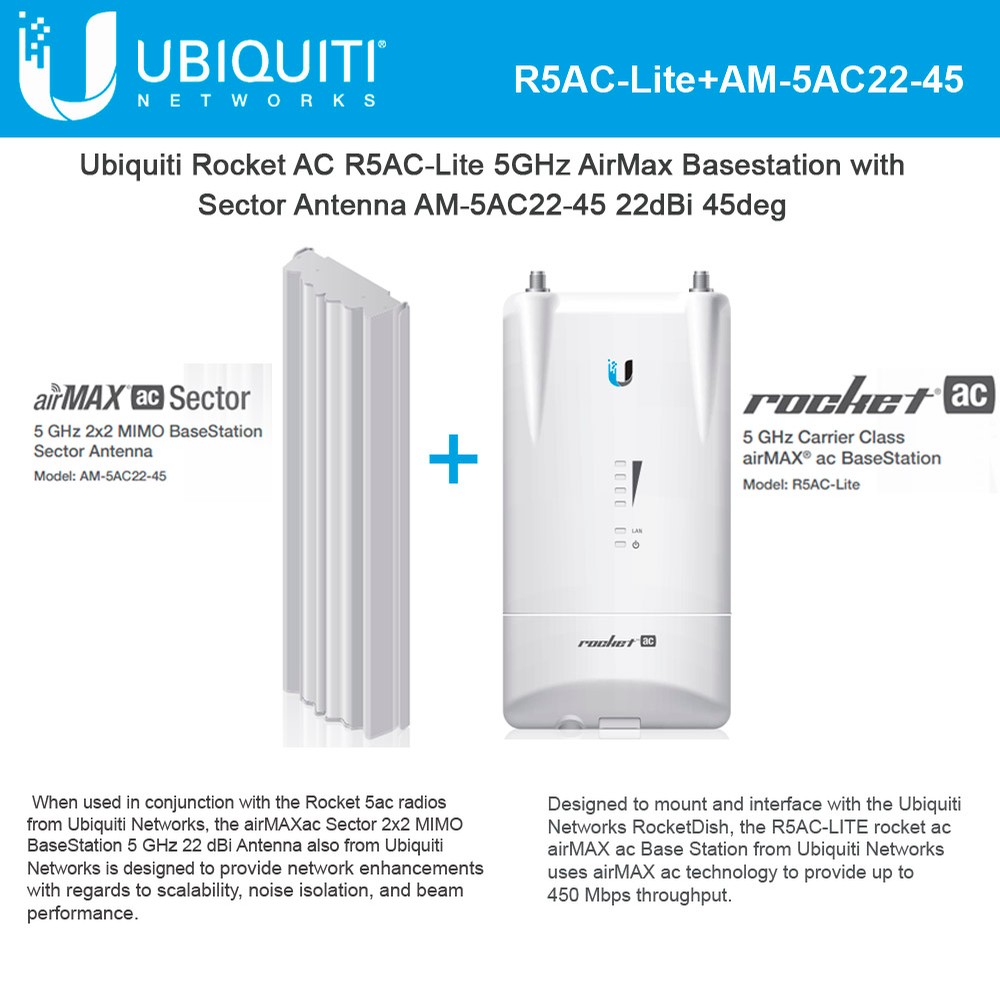

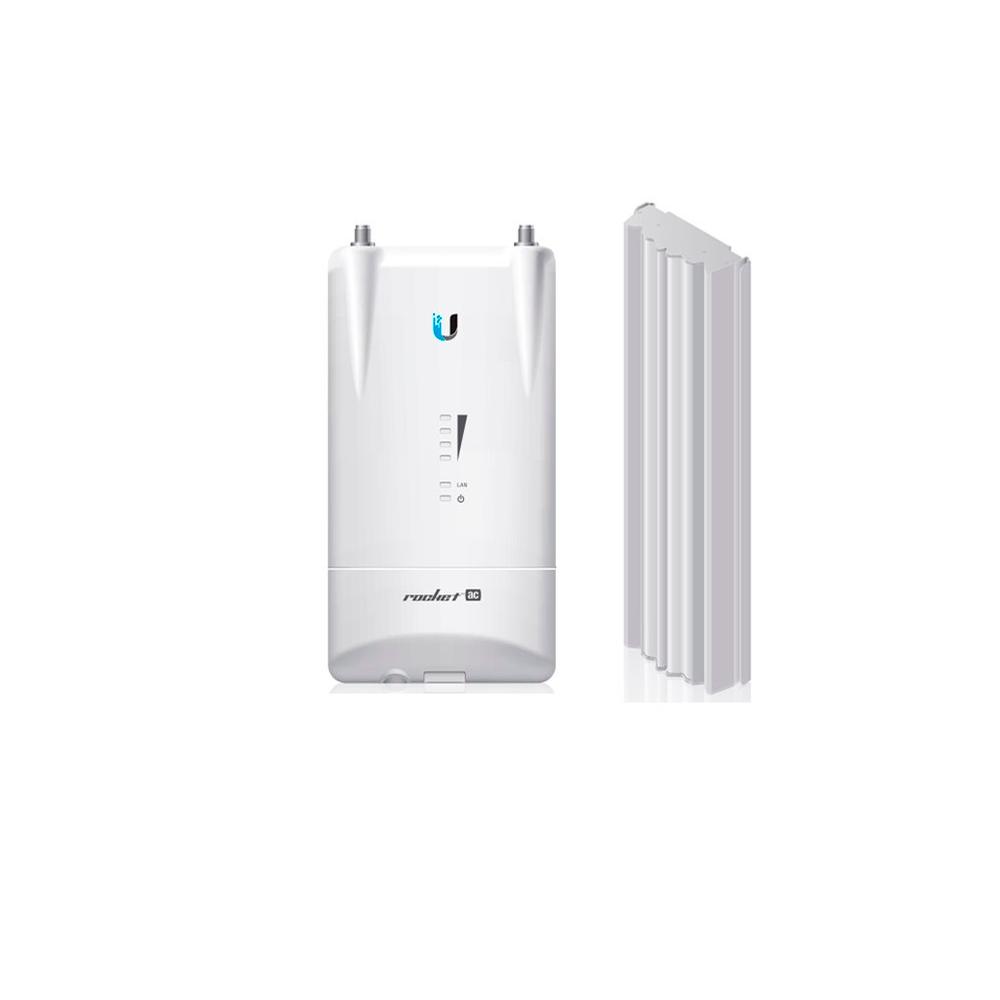

Ubiquiti Rocket AC R5AC-Lite 5GHz AirMax Basestation with Sector Antenna AM-5AC22-45 22dBi 45deg

Model#: R5AC-Lite+AM-5AC22-45

Sku: IT1424

MSRP: $450.00

Out of stock

Your Price: $450.00

Model: R5AC-LITE

The R5AC-LITE rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal. Ports on the BaseStation include one Gigabit Ethernet port and two waterproof RP-SMA RF connections to prevent against water damage.


Model: AM-5AC22-45

AM-5AC22-45 is a Ubiquiti Networks airMAX sector antenna designed to be used with Rocket 5AC radios. It operates on 5GHz frequency with 22dBi and 45deg; beamwidth.

The airMAX 802.11ac Sector Antenna is highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).


  • Ubiquiti R5AC-Lite, Rocket M5 AC Lite, airMAX AC Technology for up to 450+ Mbps. Powerful airMAX AC BaseStation, airMAX AC Technology for up to 450+ Mbps Throughput, Superior Processing by airMAX Engine with Custom IC, Plug and Play.

  • Ubiquiti AM-5AC22-45 5GHz AirMax AC 2x2 BaseStation Sector Antenna Dual-Polarization 45-Degree 22DBI, pair W/ Rocket 5ac Lite and Rocket5ac PTP, R5AC-Lite R5AC-PTP
