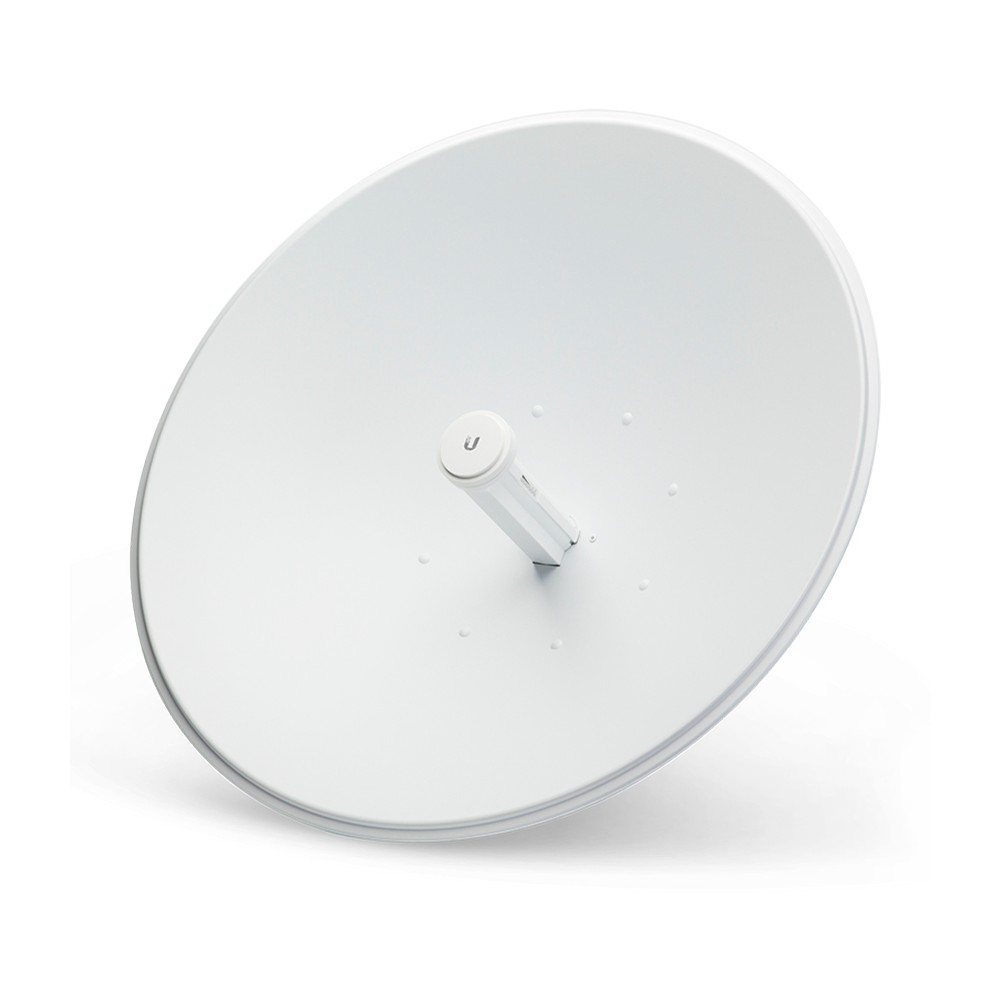

Ubiquiti Networks PowerBeam M5 PBE-M5-620-US 5GHz 29dBi High-Performance airMAX Bridge 30 km

PBE-M5-620 US

Ubiquiti
Ubiquiti Networks PowerBeam M5 PBE-M5-620-US 5GHz 29dBi High-Performance airMAX Bridge 30 km


Product Highlights
  • Ubiquiti PowerBeam M5 PBE-M5-620-US 5GHz 29dBi High-Performance airMAX Bridge 30 km
  • The PowerBeam is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.
  • Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna.
  • The PowerBeam requires no tools for assembly; only a single wrench is required for pole-mounting.
  • The form factor of the PowerBeam features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.
  • Model#: PBE-M5-620 US

    Sku: IT1416.2822.399595



    MSRP: $269.99

    In Stock

    Your Price: $199.00




    Model: PBE-M5-620 US

    PowerBeam airMAX Bridge

    The PBE-M5-620 PowerBeam airMAX Bridge 29dBi 620mm airMAX from Ubiquiti Networks is an airMAX product meant to function as customer premises equipment (CPE). With a more concentrated, direct signal clients benefit from improved noise immunity to as this bridge is capable of filtering out much of the noise that can degrade the signal. With Ubiquiti's own inner feed design installation of the PowerBeam airMAX Bridge has been greatly simplified as there is no longer a need for any cabling. Once installed the included airMAX technology helps network administrators to manage and monitor the network. From intelligent QoS to scalability Ubiquiti has provided the tools necessary to create long range networks offering reliable wireless network access to a large number of clients.airMAX Technology Included

    Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. With intelligent QoS, priority is given to voice/video for seamless streaming and is capable of high-speed, carrier-class links

    • airOS

    airOS is a highly developed, user-friendly Ubiquiti firmware technology. The firmware architecture enables high-performance and outdoor multi-point networking. It features protocol support, Ubiquiti channelization, spectral width adjustment, ACK auto-timing, AAP technology, and multi-language support.

    • Dimensions 620 x 620 x 386 mm (24.41 x 24.41 x 15.2")

    • Weight 6.4 kg (14.11 lb)

    • Power Supply 24V, 0.5A Gigabit PoE

    • Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

    • Max. Power Consumption 8.5W

    • Gain 29 dBi

    • Operating Frequency

    • Worldwide

    • USA

    • Wind Loading 872 N @200 km/h (196 lbf @125 mph)

    • Wind Survivability 200 km/h (125 mph)

    • LEDs (1) Power, (1) LAN, (4) WLAN

    • Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

    • Channel Sizes 5/8/10/20/30/40 MHz

    • Polarization Dual Linear

    • Enclosure Outdoor UV Stabilized Plastic

    • Mounting Pole-Mount Kit Included

    • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

    • Operating Temperature -40 to 70° C (-40 to 158° F)

    • Operating Humidity 5 to 95% Noncondensing

    • Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

    • Vibration Test IEC 68-2-6

    • Temperature Shock Test IEC 68-2-14

    • UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

    • Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

    • 5170 - 5875 MHz

    • 5725 - 5850 MHz
