NBE-M5-16 US

Ubiquiti

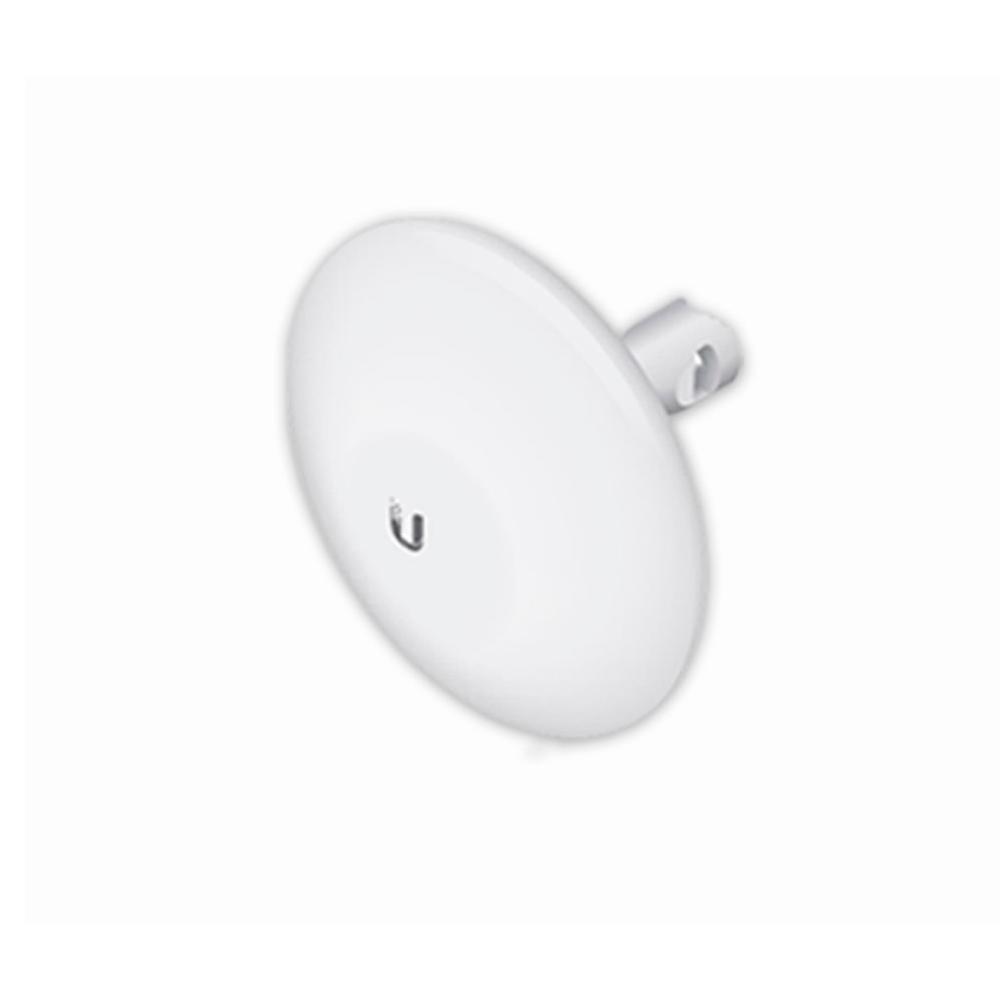

Ubiquiti Networks NanoBeam M5 NBE-M5-16 US 5GHz High-Performance airMAX Bridge 16dBi


Product Highlights
  • Ubiquiti Network NanoBeam M5 NBE-M5-16 5GHz airMAX High-Performance airMAX Bridge 16dBi
  • Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.
  • The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment.
  • The form factor of the NanoBeam features the highest gain for its size.
  • The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.

    • Model#: NBE-M5-16 US

    Sku: IT1409



    MSRP: $89.99


    Out of stock

    Model: NBE-M5-16 US

                                                     NanoBeam M5

                                                        High-Performance airMAX Bridge

    Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.

    The NBE-M5-16 NanoBeam M5 16dBi 5 GHz NanoBeam airMAX Bridge from Ubiquiti directs RF energy in a tighter beamwidth. NanoBeam maximizes noise immunity by its uniform bandwidth.



    • Incredible Antenna “Beam” Performance

    The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.

    System Information:

    • Processor Specs: Atheros MIPS 74KC, 560 MHz
    • Memory Information: 64MB DDR2, 8 MB Flash
    • Networking Interface: 1 x 10/100Base-TX (Cat. 5, RJ-45) Ethernet Interface
    • Approvals: FCC, IC, CE
    • RoHS Compliance: Yes

    Antenna Characteristics:

    • Frequency Range: 5.725 - 5.5850 GHz (US), 5.170-5.875 (WW)
    • Gain: 16 dBi Dual Linear Polarized
    • Dimensions: 140x140x54 mm
    • Weight: 1.203g
    • Enclosure Characteristics: Outdoor UV Stabilized Plastic
    • Mounting Kit: Pole Mounting Kit included
    • Maximum Power Consumption: 6 Watts
    • Power Supply: 24V, 0.5A POE Adapter Included
    • Power Method: Passive PoE (pairs 4,5+; 7,8 return)
    • Operating Temp Range: -40°C to 70°C
    • Wind loading: 4.8 lbf @ 125 mph
    • Wind Survivability: 125 mph
    • ESD/EMP Protection: Air: +/- 24kV, Contact +/- 24kV
    • Shock and Vibration: ETSI300-019-1.4
