Ubiquiti Networks airMAX ac 2x2 BaseStation Sector Antenna AM-5AC22-45 5GHz Dual-Polarization

AM-5AC22-45

Ubiquiti
Ubiquiti Networks airMAX ac 2x2 BaseStation Sector Antenna AM-5AC22-45 5GHz Dual-Polarization 22dBi (Pair W/ Rocket 5ac Lite and Rocket5ac PTP, R5AC-Lite R5AC-PTP)


Product Highlights
  • AM-5AC22-45 is a Ubiquiti Networks airMAX sector antenna designed to be used with Rocket 5AC radios. It operates on 5GHz frequency with 22dBi and 45deg; beamwidth.
  • The airMAX 802.11ac Sector Antenna is highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the
  • With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM.
  • This increases the number of bits per second for a fixed bandwidth (or data rate).
  • As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios.
  • Model#: AM-5AC22-45

    Sku: IT1397.2190.305943



    MSRP: $219.99

    In Stock

    Your Price: $199.00




    Model: AM-5AC22-45

                                     airMAX AC Sector Antenna

                                             2x2 BaseStation

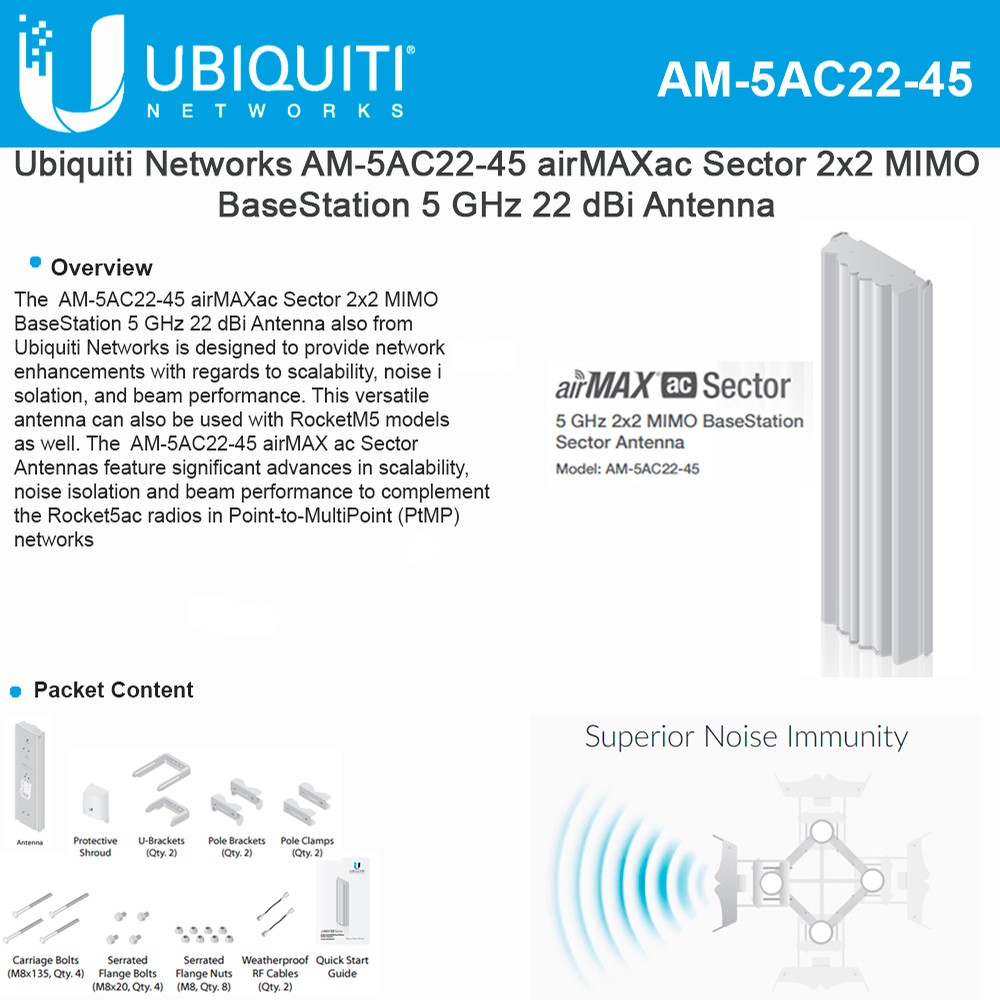

    The  AM-5AC22-45 airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna also from Ubiquiti Networks is designed to provide network enhancements with regards to scalability, noise isolation, and beam performance. This versatile antenna can also be used with RocketM5 models as well.

    The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.





    • Breakthrough Design and Performance

    The airMAX ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

    • Market-Leading Beam Performance

    Compare the diagram of the airMAX ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.



    • Industrial-Strength Construction

    airMAX ac Antennas are designed with robust mechanical design for outdoor application use.



    Model: AM-5AC22-45

    Features:

    • Frequency Range: 5.10-5.85 GHz
    • Gain: 22dBi
    • Polarization: Dual Linear
    • Cross-pol Isolation: 25dB min
    • Max VSWR: 1.5:1
    • Hpol Beamwidth (6dB): 45 deg.
    • Vpol Beamwidth (6dB): 45 deg.
    • Elevation Beamwidth: 4 deg.
    • Electrical Downtilt: 2 deg.
    • ETSI Specification: EN 302 326 DN2
