PBE-5AC-500 US

Ubiquiti

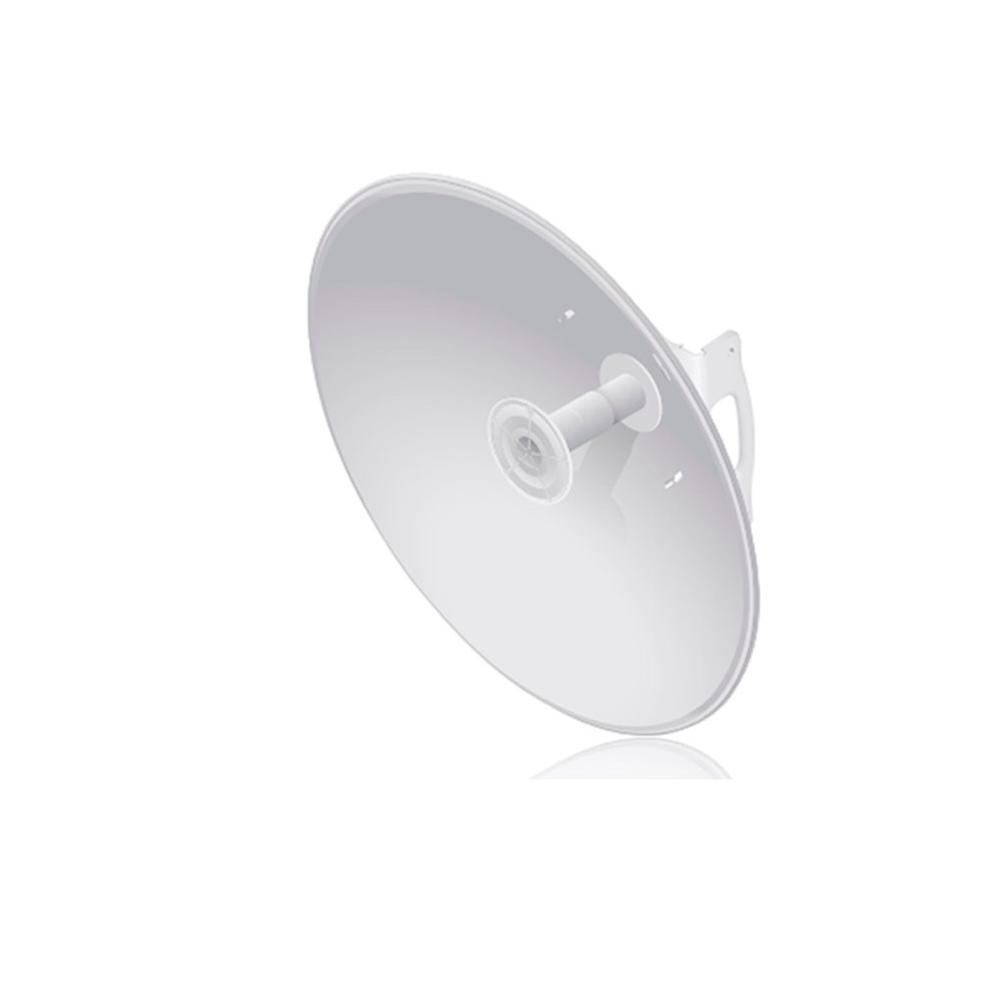

Ubiquiti PowerBeam PBE-5AC-500 US 5Ghz AC Bridge, 500mm - US Version


Model#: PBE-5AC-500 US

Sku: IT1394



MSRP: $199.99

In Stock

Your Price: $199.99






Model: PBE-5AC-500 US

High-Performance airMAX®ac Bridge

Incorporating a dish reflector design with proprietary airMAX®ac technology, the PowerBeam™ac is ideal for CPE deployments requiring maximum performance.



  • Integrated Radio Design

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.



  • Superior Processing

Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

  • Incredible Antenna “Beam” Performance

The form factor of the PowerBeam ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

  • Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

  • Protective Radome

The PowerBeam ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.

Specifications PBE-5AC-500

Processor Specs Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 16 MB Flash
Networking Interface (1) 10/100/1000 Ethernet Port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Dimensions 520 x 520 x 308 mm (20.47 x 20.47 x 12.13")
Weight 2.35 kg (5.18 lb)
Power Supply 24V, 0.5A Gigabit PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Votlage Range 20-26VDC
Max. Power Consumption 8.5W
Gain 27 dBi
Operating Frequency
Wordlwide
USA

5150 - 5875 MHz
5150 - 5250 MHz
Wind Loading 264.6 N @ 96 km/h (60 lbf @ 60 mph)
Wind Survivability 96 km/h (60 mph)
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes
PtP Mode
PtMP Mode

10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5`
Vibration Ttest IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
