ES-48-500W

Ubiquiti

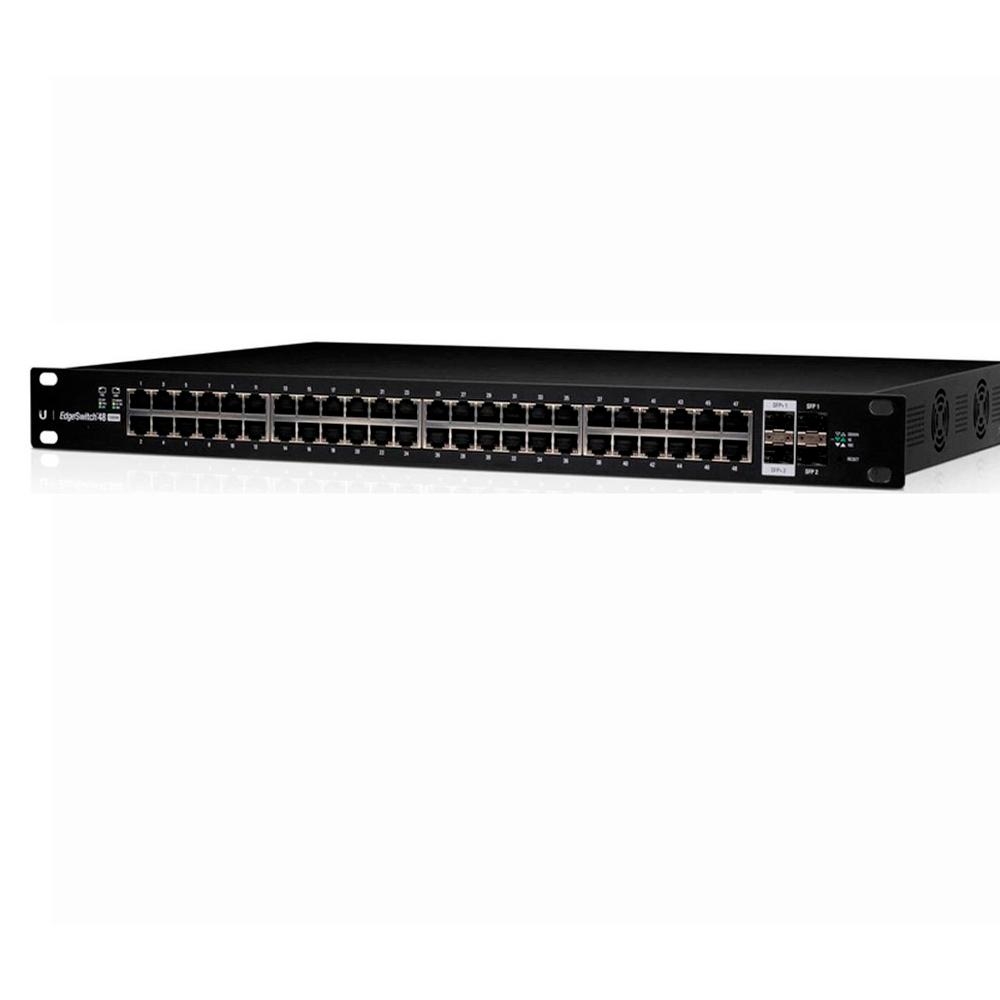

Ubiquiti Networks EdgeSwitch ES-48-500W 48 Port Managed PoE+ Gigabit Switch with SFP


Product Highlights
  • (48) Gigabit RJ45 Ports
  • (2) SFP+ Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Rackmountable

    • Model#: ES-48-500W

    Sku: IT1393



    MSRP: $1,106.00

    In Stock

    Your Price: $1,106.00






    SKU: ES-48-500W

    EdgeSwitch Managed PoE+ Gigabit Switch with SFP

    48 RJ45 Gigabit ports, the EdgeSwitch delivers robust performance, PoE+ support and intelligent switching for growing networks.

    The EdgeSwitch ES-48-500W is 48-Port, Managed PoE+ Gigabit switch with 500W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+ SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.


    • Enterprise-Class Features

    The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.



    • Optical Fiber Backhaul

    Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.



    • Convenient PoE+ Support

    The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.



    • Advanced UI

    The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.



    SPECIFICATIONS

    Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
    Weight 6.1 kg (13.5 lb)
    Total Non-Blocking Throughput 70 Gbps
    Switching Capacity 140 Gbps
    Forwarding Rate 104.16 Mpps
    Max. Power Consumption Includes PoE Output 500W, Excludes PoE Output 64W
    Power Method 100-240VAC/50-60 Hz, Universal Input
    Power Supply AC/DC, Internal, 500W DC
    LEDs Per Port RJ45 Data Ports PoE, Speed/Link/Activity
    Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
    Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
    Certifications CE, FCC, IC
    Rackmount Yes, 1U High
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 5 to 95% Noncondensing
    Shock and Vibration ETSI300-019-1.4 Standard




    Datasheet

    PDF File Ubiquiti Networks EdgeSwitch ES-48-500W 48 Port Managed PoE+ Gigabit Switch with SFP
