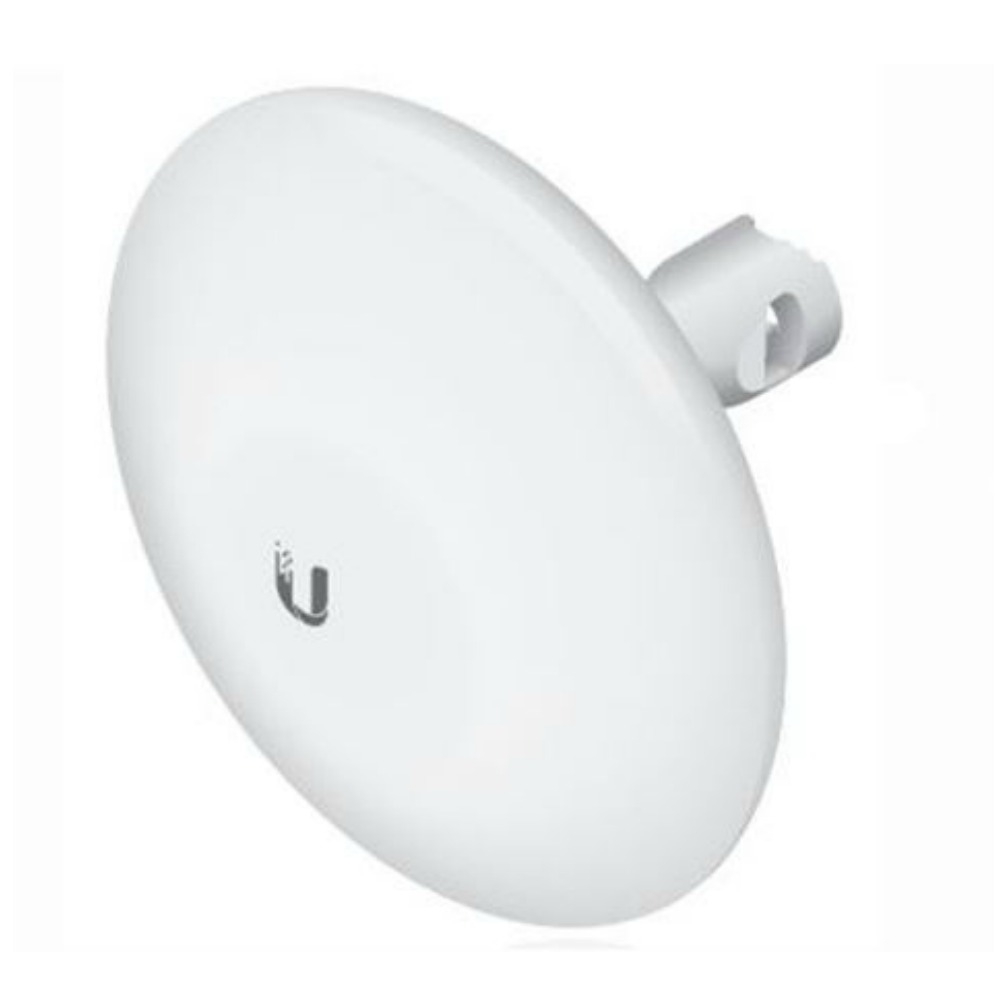

Ubiquiti Networks NBE-M5-16 5GHz NanoBeam M5 16dBi 2x2 - INTERNATIONAL VERSION

Product Highlights
  • 5 GHz
  • 16 dBi
  • Atheros MIPS 74Kc, 560 MHz
  • (1) 10/100 Ethernet Port
  • 24V, 0.5A PoE
  • Model#: NBE-M5-16

    Sku: IT1388

    MSRP: $75.00

    Out of stock

    Your Price: $75.00

    Model: NBE-M5-16

    International Version

    Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam.

    Available for the 2.4 and 5 GHz frequency bands, the NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

    The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.

    System Information:

    • Processor Specs: Atheros MIPS 74KC, 560 MHz
    • Memory Information: 64MB DDR2, 8 MB Flash
    • Networking Interface: 1 x 10/100Base-TX (Cat. 5, RJ-45) Ethernet Interface
    • Approvals: FCC, IC, CE
    • RoHS Compliance: Yes

    Antenna Characteristics:

    • Frequency Range: 5.725 - 5.5850 GHz (US), 5.170-5.875 (WW)
    • Gain: 16 dBi Dual Linear Polarized
    • Dimensions: 140x140x54 mm
    • Weight: 1.203g
    • Enclosure Characteristics: Outdoor UV Stabilized Plastic
    • Mounting Kit: Pole Mounting Kit included
    • Maximum Power Consumption: 6 Watts
    • Power Supply: 24V, 0.5A POE Adapter Included
    • Power Method: Passive PoE (pairs 4,5+; 7,8 return)
    • Operating Temp Range: -40°C to 70°C
    • Wind loading: 4.8 lbf @ 125 mph
    • Wind Survivability: 125 mph
    • ESD/EMP Protection: Air: +/- 24kV, Contact +/- 24kV
    • Shock and Vibration: ETSI300-019-1.4



    PDF File Ubiquiti Networks NBE-M5-16 5GHz NanoBeam M5 16dBi 2x2 - INTERNATIONAL VERSION
