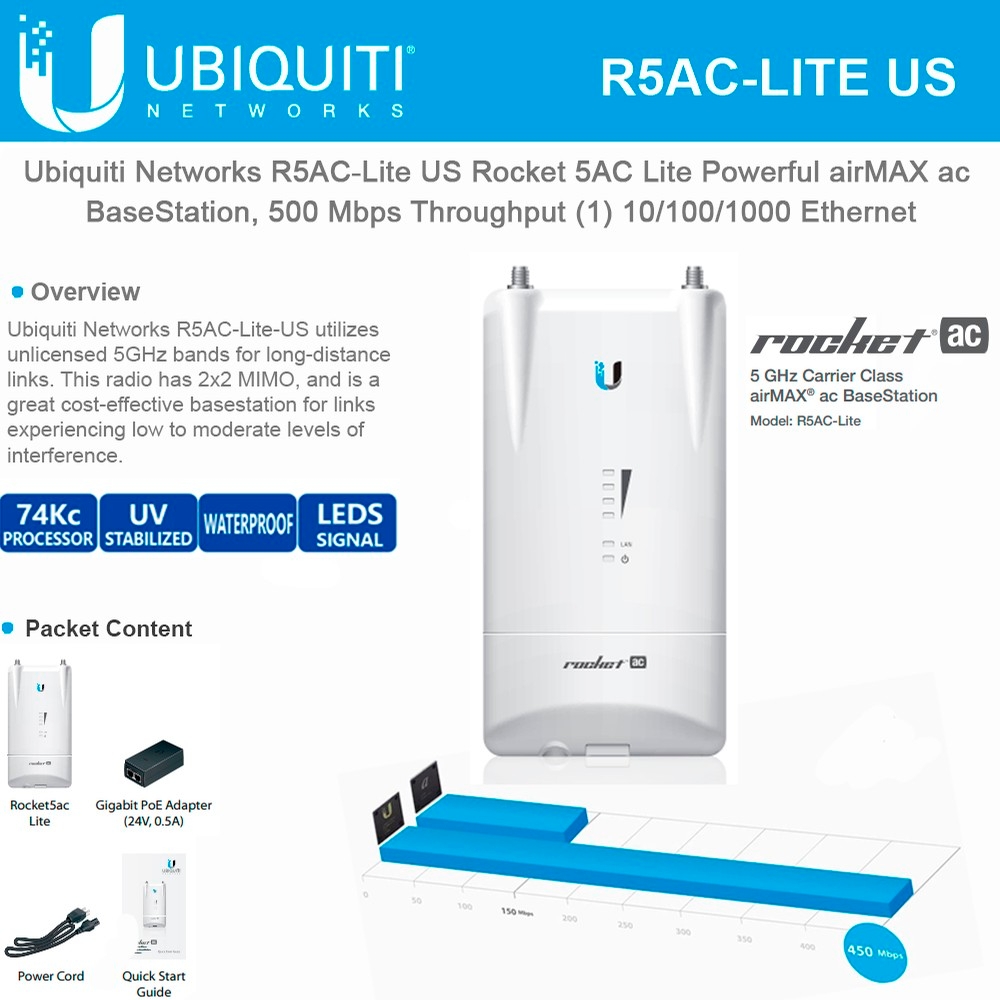

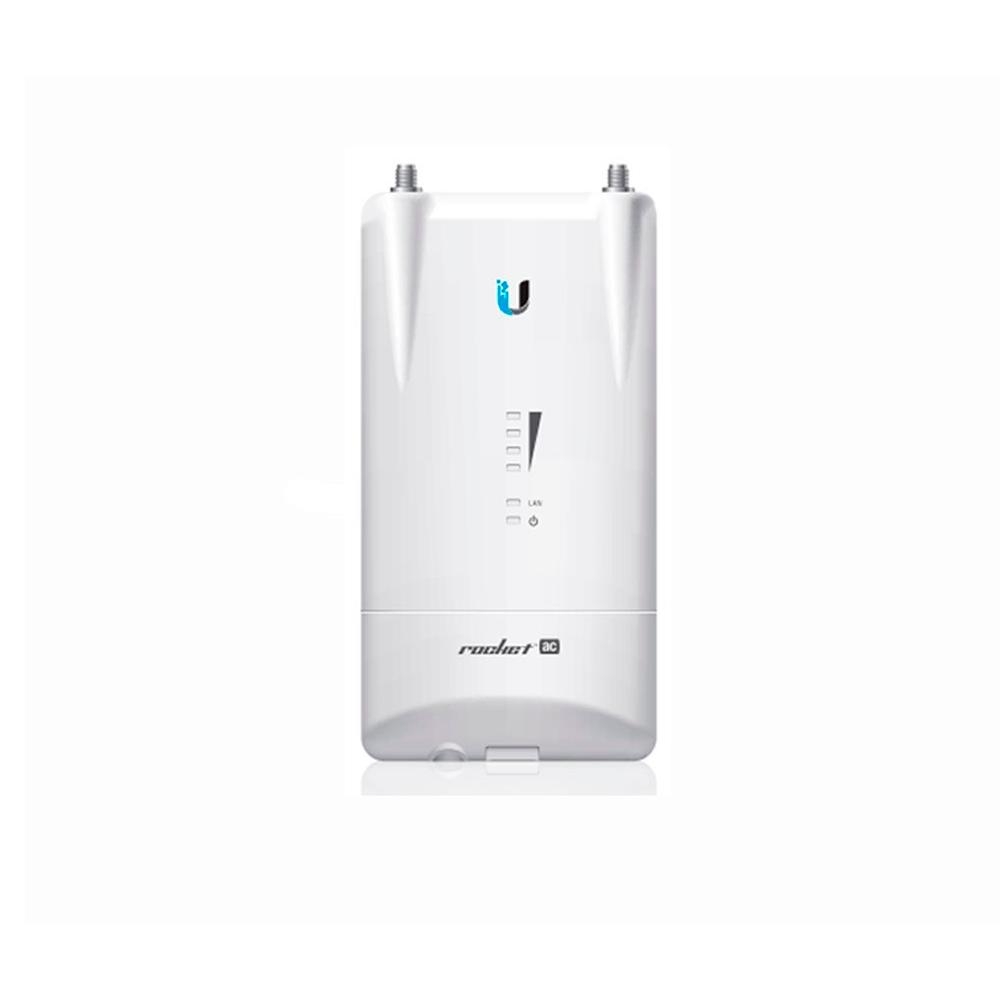

Ubiquiti Rocket AC Lite R5AC-Lite US Lite Powerful airMAX ac BaseStation 500Mbps PtP and PtMP
Model#: R5AC-LITE US
Sku: IT1387
MSRP: $134.99
In Stock
Your Price: $134.99
Model: R5AC-Lite-US
US Version
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Plug and Play Integration
The innovative airMAX® ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
R5AC-Lite Specifications
| Dimensions | 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”) |
| Weight | 250 g (8.81 oz) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. Power Consumption | 8.5W |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 SDRAM, 16 MB NOR FLASH |
| Networking Interface | (1) 10/100/1000 Mbps |
| RF Connections | (2) RP-SMA (Waterproof ) |
| LEDs | Power, LAN, (4) Signal Strength |
| Channel Sizes | 10/20/30/40/50/60/80 MHz,10/20/30/40 MHz |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Supported Voltage Range | 20-26VDC |
| ESD/EMP Protection | ± 24KV Air / Contact |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Modes | Access Point, Station |
| Services | Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Utilities | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Distance Adjustment | Dynamic Ack and Ackless Mode |
| Power Adjustment | Software Adjustable UI or CL |
| Security | WPA2 AES Only |
| QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
| Statistical Reporting | Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate |
| Other | Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM |
| Ubiquiti Specific Features | 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode |
Datasheet
