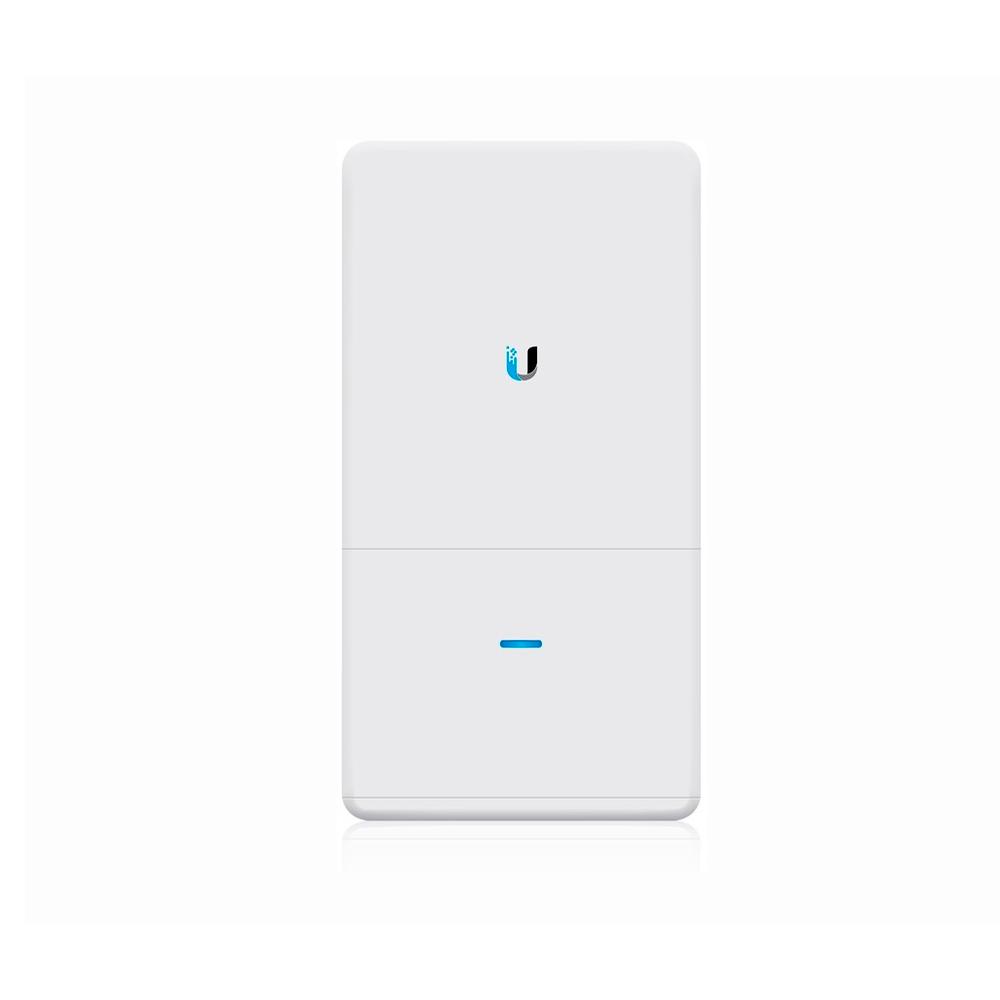

UAP-AC Outdoor

Ubiquiti


Ubiquiti UniFi UAP-AC Outdoor MIMO 11ac 1300Mpbs Dual-Band 600ft PoE+


Model#: UAP-AC Outdoor

Sku: IT1375



MSRP: $469.99


Out of stock

UAP-AC- Outdoor

UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual-Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments

  • The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed.
  • The UniFi Enterprise WiFi System includes the UniFi Controller software which can be easily accessed through any standard web browser. The software installs on any Windows, Mac, or Linux PC and can be run on-premise, in your private cloud or in a public cloud service. Using the UniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, guest/hot-spot management, mobile roaming and advanced security options are all seamlessly integrated.
  • The UniFi controller software is included with each access point. There are no additional software license or subscription costs required to use the UniFi controller.

  • Dimensions 340 x 180 x 65 mm

  • Weight 1.55 kg (with Wall Mount)

  • 2 kg (with Pole Mount)

  • Networking Interface (2) 10/100/1000 Ethernet Ports

  • Buttons Reset

  • Wifi Standards 802.11 a/b/g/n/ac

  • Power Method Passive Power over Ethernet (48V), 802.3at Supported

  • (Supported Voltage Range: 39 to 57VDC)

  • Power Supply 48V, 0.5A PoE Gigabit Adapter (Included)

  • Maximum Power Consumption 22 w

  • BSSID Up to Four Per Radio

  • Power Save Supported

  • Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

  • Certifications CE, FCC, IC

  • Mounting Wall and Pole (Kits Included)

  • Operating Temperature -30 to 60 °C

  • Operating Humidity 5 - 80% Non-Condensing

  • Antennas

  • 2.4 GHz 3 Integrated (Supports 3x3 MIMO with Spatial Diversity)

  • 5 GHz 3 Integrated (Supports 3x3 MIMO with Spatial Diversity)

  • Max TX Power

  • 2.4 GHz 28 dBm

  • 5 Ghz 28 dBm

  • Advanced Traffic Management

  • VLAN 802.1Q

  • Advanced QoS Per-User Rate Limiting

  • Guest Traffic Isolation Supported

  • WMM Voice, Video, Best Effort, and Background

  • Concurrent Clients 200+

  • Supported Data Rates (Mbps)

  • 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

  • 802.11n (5 GHz 2x2) 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

  • 802.11n (2.4 GHz 3x3) 6.5 Mbps to 300 Mbps (MCS0 - MCS23, HT 20/40)

  • 802.11ac, 5 GHz (3x3) 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)

  • 802.11b 1, 2, 5.5, 11 Mbps

  • 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 200 ft 400 ft 600 ft UAP-AC-Outdoor Datasheet 15
