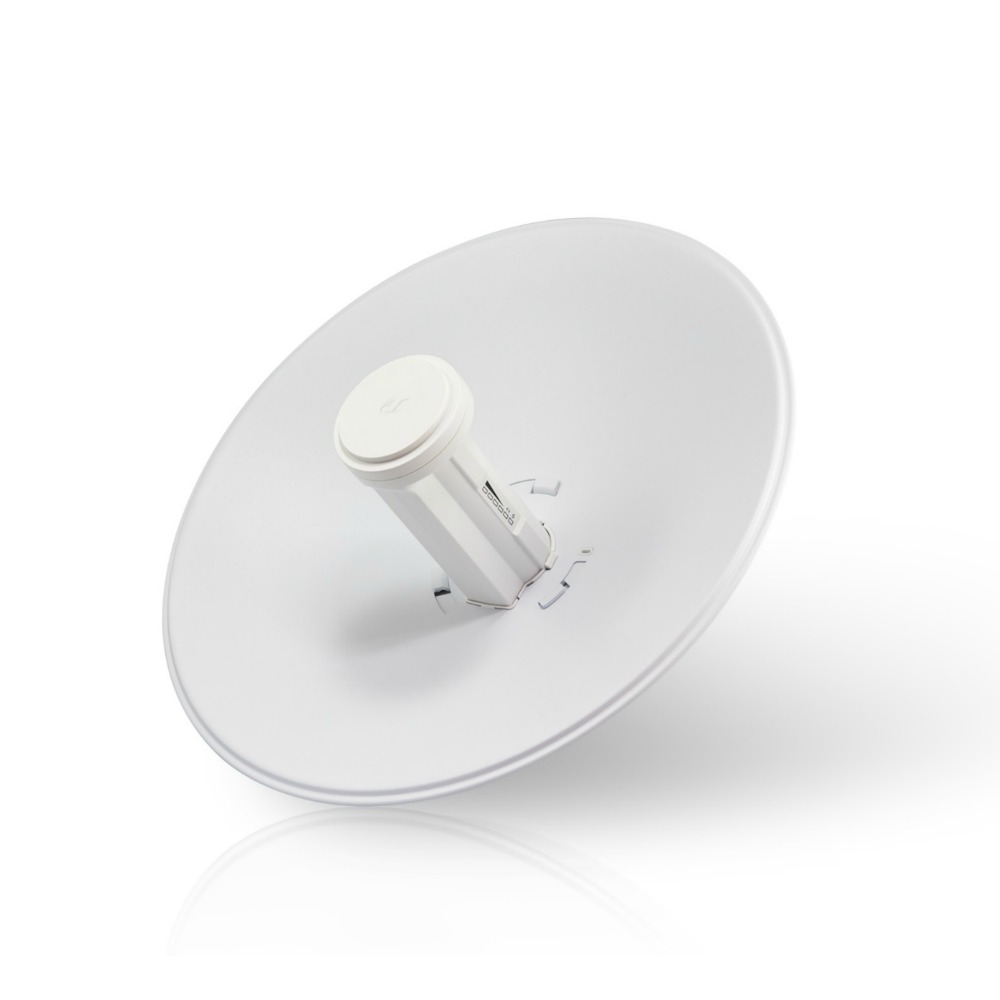

Ubiquiti NBE-M5-300 US Version NanoBeam M5 22dBi Outdoor airMAX CPE 300mm PoE

NBE-M5-300 US

Ubiquiti NanoBeam M5 NBE-M5-300-US Outdoor 5GHz 22dBi 400mW 802.11a/b/g/n airMAX Bridge CPE wireless client, PtP and PtMP links, 300mm dish, 26dbm, intregrated Antenna Radio with PoE, 150+Mbps of real outdoor throughput and up to 25km+ range.

Model#: NBE-M5-300 US

Sku: IT1372.1803.247371

MSRP: $89.99

Out of stock

Your Price: $79.00

Model: NBE-M5-300 US

  • Ubiquiti NanoBeam M5 5GHz 22dBi AirMax CPE

  • The new NanoBeam M has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor.

  • The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design.

  • This version of NanoBeam has 300mm dish with 22dbi gain and it's total output power is 26dbm.

  • The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved.

  • This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Product Description:

  • Processor: Atheros MIPS 74KC, 560 MHz

  • Memory: 64 MB DDR2, 8 MB Flash

  • (1) 10/100/1000 Ethernet Port

  • RoHS Compliance: Yes

  • Power Supply: 24V, 0.5A PoE

  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

  • Max. Power Consumption: 6W

  • Operating Frequency: 5.47-5.825GHz

  • Gain: 22dBi

  • Max. VSWR: 2:1

  • Built-In Mechanical Downtilt: +20° to -10°

  • Output Power: 26 dBm

  • Wind Loading: 45 lbf @ 125 mph

  • Wind Survivability: 125 mph

  • LEDs: (1) Power, (1) LAN, (4) WLAN

  • Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

  • Channel Sizes: 5/8/10/20/30/40 MHz

  • Polarization: Dual Linear

  • Enclosure: Outdoor UV Stabilized Plastic

  • Mounting: Pole-Mount (Kit Included), Wall-Mount

  • ESD/EMP Protection: Air: ±24 kV, Contact:± 24 kV

  • Operating Temperature: -40 to 70° C

  • Operating Humidity: 5 to 95% Non-Condensing

  • Shock & Vibration: ETSI300-019-1.4
