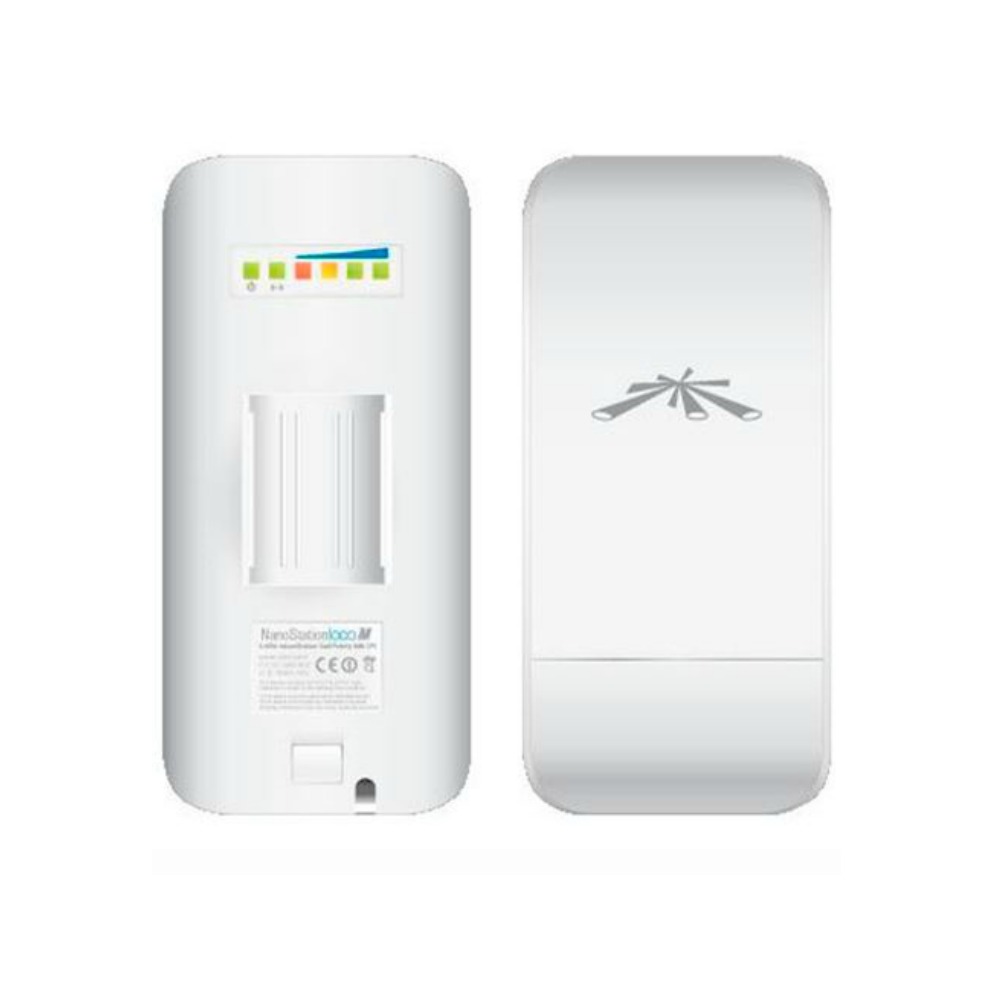

Featuring a panel antenna and dual-polarity performance, the NanoStation M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor. The NanoStation LocoM2 offers 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.
The NanoStation M features the CPE design that expanded the global Wireless ISP industry.
The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation M. 90° tilt adjustment allows for easy positioning.
Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Enclosure Size 16.3 cm. length x 3.1 cm. height x 8cm. width
Enclosure Characteristics Outdoor UV Stabalized Plastic
Shock and Vibration ETSI300-019-1.4
Gain 8dBi (2400-2500MHz) Surival Wind 216 km /hr
RoHS Compliance YES
Multi-Polarized 3dB Beamwidth Elevation 60 degrees
