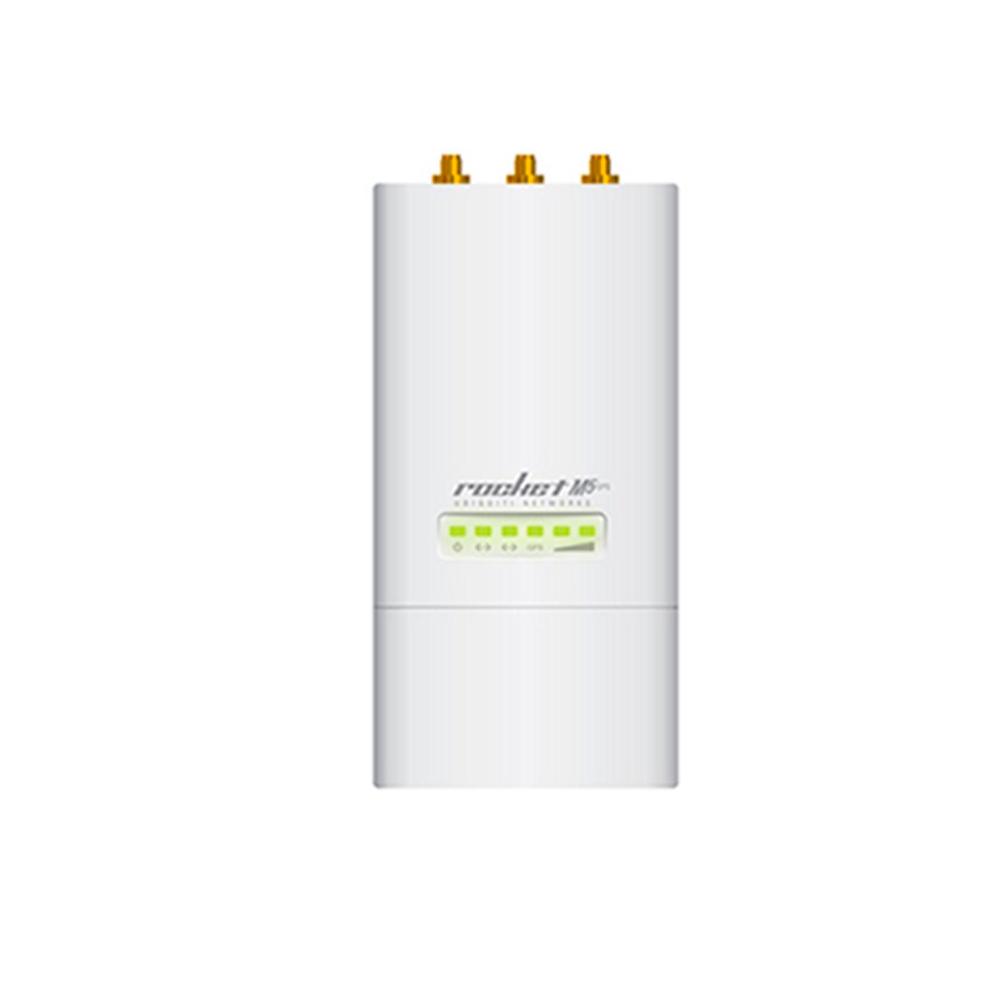

The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.
300+ subs per sectored base station Latency: Latency remains low for voice and video applications as network scales Speed: 150MBps+ PtMP performance Range: 50km+ outdoor range
Rocket M5 is a powerful outdoor unit for the 5GHz band designed for direct mounting on the OUTSIDE antenna series UBNT AirMAX. Unit allows for real communication speeds up to 150 Mbps. Thus the unit can simply create the backbone connections or access points.
Another advantage is in addition to high data transfer rates thanks to the use of 802.11n standard time multiplex TDMA, which allows the unit in the AP to connect more than 300 clients, and low latency.
Operation mode AP, Client, WDS
Frequence 5,47 - 5,825 GHz
Transmission speed 300 Mbps
Output for an external antenna 2x rev. SMA male
TX Power regulation yes
Sensitivity -96 dBm
Encryption WEP 64/128/152, WPA, WPA2, 802.1X
LAN port 1x RJ45 10/100 Mbps
Default IP 192.168.1.20
Default name ubnt
Default password ubnt
Power supply 24 V, 1 A
Operational temperature -30 - 75 °C
Dimension 160 x 80 x 30 mm
Interface LAN, WiFI
Supported OS AirOS V
Max. power 27 dBm
Procesor Atheros MIPS 24KC, 400 MHz
RAM 64 MB
NAND 8 MB
