ERPoe-5

Ubiquiti

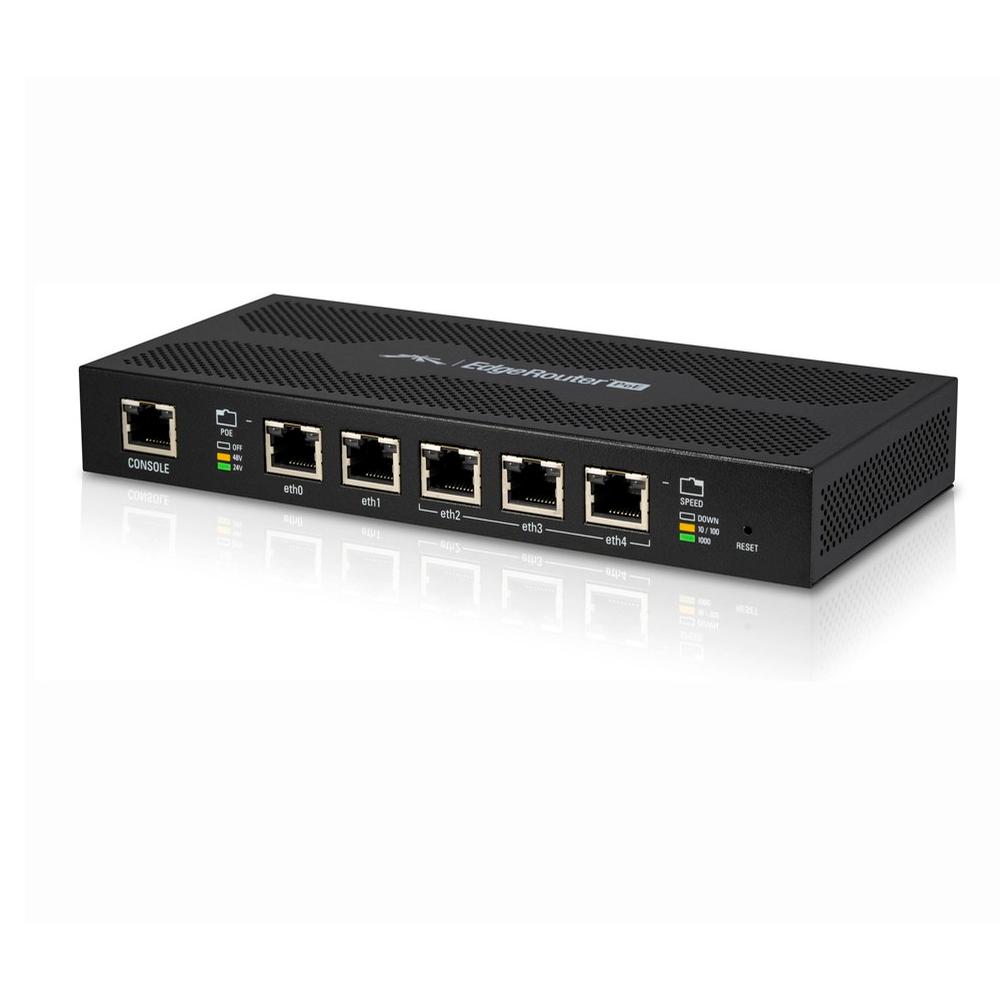

Ubiquiti Networks EdgeRouter PoE ERPOE-5 5-Port Router with Power over Ethernet 1 million pps



Product Highlights
  • The ERPOE-5 EdgeRouter PoE 5-Port Advanced Network Router from Ubiquiti Networks combines reliability with enterprise-level features.
  • This Router is capable of routing up to 1 million packets per second.
  • The EdgeRouter provides a graphical user interface, which is designed for convenient setup and control.
  • The EdgeRouter PoE supports 24V or 48V passive PoE to power multiple devices on the network.
  • The EdgeRouter PoE delivers uptime performance equal to leading carrier or enterprise technology solutions.
  • Model#: ERPoe-5

    Sku: IT1362



    MSRP: $199.99


    Out of stock

    Model:ER-Poe-5

                                                                 EdgeRouter PoE

                                                5-Port Router with Power over Ethernet

    The ERPOE-5 EdgeRouter PoE 5-Port Advanced Network Router from Ubiquiti Networks combines reliability with enterprise-level features. Powered by a proprietary and intuitive graphical interface, and EdgeOS, the EdgeRouter can easily be configured for routing, security, and management features to efficiently run the network. For advanced network professionals, an integrated CLI is available for quick and direct access, using familiar commands. This Router is capable of routing up to 1 million packets per second.

    The EdgeRouter provides a graphical user interface, which is designed for convenient setup and control. Accessed via a network port and Web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit/receive speeds, and status for each physical and virtual interface

    • Versatile Functionality

    Use the EdgeRouter™ PoE’s advanced feature set to run applications on the customizable open platform.

    • Powerful Routing Performance

    The EdgeRouter™ PoE routes up to 1 million packets per second to meet the needs of carrier-class networks.

    • Convenient PoE Support

    The EdgeRouter™ PoE supports 24V or 48V passive PoE to power multiple devices on the network.

    • Carrier-Class Reliability

    The EdgeRouter™ PoE delivers uptime performance equal to leading carrier or enterprise technology solutions.

    • EdgeOS™ - Advanced UI

    The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.

    • Dimensions: 200 x 90 x 30 mm (7.87 x 3.54 x 1.18 in)
    • Weight: 360 g (12.7 oz)
    • Max. Power Consumption: 60 W
    • Power: 48VDC, 1.25A Power Adapter (Included)
    • Power Input: 48VDC Input (Supported Range: 38 to 54VDC)
    • Power Connector Size: DC Power Jack, 2.1 mm, 2.1 mm ID, 5.5 mm OD
    • Button: Reset
    • Networking Interfaces:
    • - Serial Console Port: (1) RJ45 Serial Port
    • - Data Ports: (2) 10/100/1000 Ethernet Router Ports/(3) 10/100/1000 Ethernet Router/Switch Ports
    • Layer 3 Forwarding Performance:
    • - Packet Size: 64 Bytes, 1,000,000 pps
    • - Packet Size: 512 Bytes or Larger, 3 Gbps (Line Rate)
    • System Memory: 12 MB DDR2 RAM
    • Max. PoE Wattage Combined for All 5 Data Ports: 50 W
