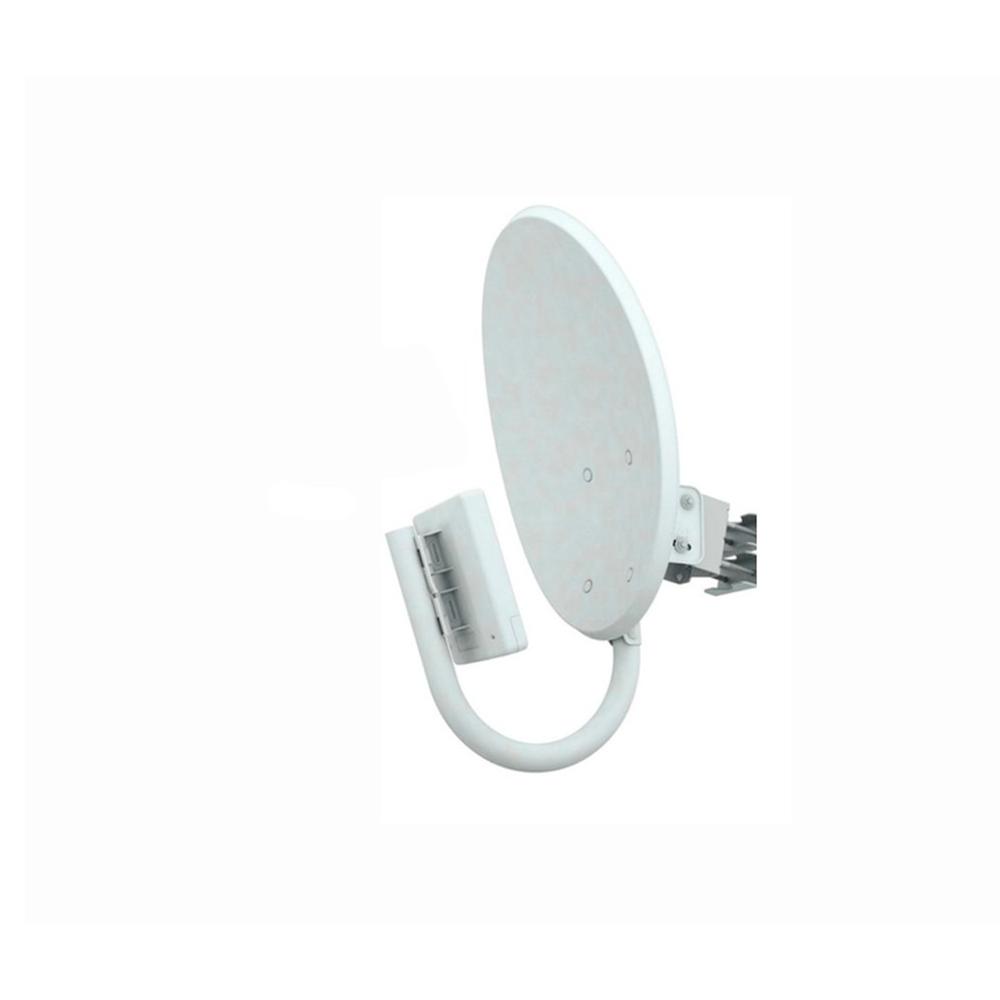

Featuring a dish reflector design and dual-polarity performance, the NanoBridge M is Ubiquiti Networks' pioneering all-in-one design for an airMAX® CPE.
The NanoBridge M900 adds more power and boost to your 900MHz system. The product can be used as a CPE or when paired, makes a perfect Bridge/PtP solution. The NanoBridge M9 adds more power and boost to your 900MHz system; The product can be used as a CPE or when paired, makes a perfect Bridge/PtP solution.
The NanoBridge M combines Ubiquiti’s Innerfeed and AirMax (MIMO TDMA Protocol) technologies to create a simple, yet extremely powerful and robust wireless unit capable of 100+Mbps real outdoor throughput and up to 30km+ range
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
*** Price per unit. Two units are needed per link.***
Processor Specs: Atheros MIPS 24KC, 400MHz
Memory Information: 64MB SDRAM, 8MB Flash
Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
Wireless Approvals: FCC Part 15.247, IC RS210
RoHS Compliance: YES
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting Kit: Pole Mounting Kit included
Power Supply: 24V, 1A POE Supply included
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature: -30C to 75C
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
Dimensions: 543 x 440 x 725 mm
Weight: 1310 g
Max Power Consumption: 6.5 Watts
Antenna Gain: 10.6 - 11.3 dBi
Operating Frequency: 902-928 MHz
TX Power: DataRate - MCS0, Avg. TX - Up to 28 dBm
RX: DataRate - MCS0, Sensitivity - Up to -96 dBm
