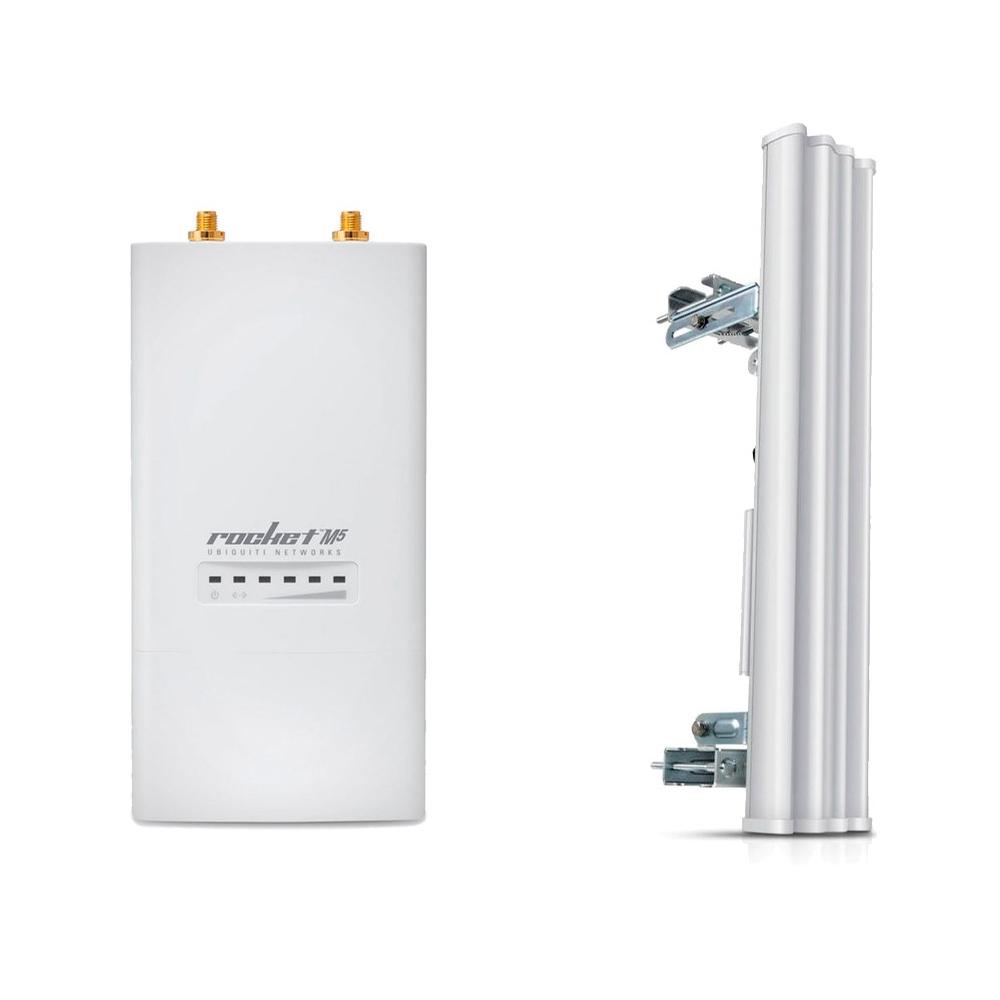

Ubiquiti AirMax Rocket M5 5GHz Hi Power 2x2 MIMO Outdoor BaseStation 50+km + Ubiquiti AirMax Sector


Sku: IT1340

MSRP: $260.17

Out of stock

  • Ubiquiti Rocket M5 AirMax

  • The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP).

  • The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.

  • Designed to advance the Global Wireless ISP industry to the next level. Featuring a compact indoor/outdoor design and an interface so intuitive even the most technically challenged can instantly become experts. But, don't be fooled; it is as powerful as it is simple.

  • True Carrier Class Network Performance.

  • Scalability: 300+ subs per sectored base station Latency: Latency remains low for voice and video applications as network scales Speed: 150MBps+ PtMP performance Range: 50km+ outdoor range

  • Rocket M5 is a powerful outdoor unit for the 5GHz band designed for direct mounting on the OUTSIDE antenna series UBNT AirMAX. Unit allows for real communication speeds up to 150 Mbps. Thus the unit can simply create the backbone connections or access points.

  • Another advantage is in addition to high data transfer rates thanks to the use of 802.11n standard time multiplex TDMA, which allows the unit in the AP to connect more than 300 clients, and low latency.

  • The output of the MIMO antenna AirMAX RSMA are 2 connectors in the waterproof design.

  • Ubiquiti AirMax 5Ghz 2X2 MIMO 19dbi 120 Degree Sector

  • Rocket M Seamlessly Integrates with the AirMax Sector

  • Revolutionary, Cost/Performance Breakthrough Carrier Class, 5GHz AirMax 2x2 MIMO Basestation Sector Antenna. Available in several frequencies, gain and horizontal patterns, these all-new 802.11n MIMO 2x2 sector antennas are optimized for the new airMAX software and M series Ubiquiti radios.

  • World Class Antenna Designs:

  • Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included

Ubiquiti Rocket M5 AirMax

  • Operation mode AP, Client, WDS

  • Frequence 5,47 - 5,825 GHz

  • DHCP yes

  • Transmission speed 150 Mbps

  • Standards 802.11a/n

  • Chipset Atheros

  • Output for an external antenna 2x rev. SMA male

  • TX Power regulation yes

  • Sensitivity -96 dBm

  • Modulation OFDM

  • Encryption WEP 64/128/152, WPA, WPA2, 802.1X

  • LAN port 1x RJ45 10/100 Mbps

  • Default IP

  • Default name ubnt

  • Default password ubnt

  • Power supply 24 V, 1 A

  • Operational temperature -30 - 75 °C

  • Dimension 160 x 80 x 30 mm

  • Interface LAN, WiFI

  • Supported OS AirOS V

  • Max. power 27 dBm

  • Procesor Atheros MIPS 24KC, 400 MHz

  • RAM 64 MB

  • NAND 8 MB


Ubiquiti AirMax 5Ghz 2X2 MIMO 19dbi 120 Degree Sector

  • Frequency Range: 5.10-5.85GHz

  • Gain: 18.6-19.1dBi

  • Polarization: Dual Linear

  • Cross-polarization Isolation: 28dB min

  • H-Pol beamwidth (6 dB): 123 deg

  • V-Pol beamwidth (6 dB): 123 deg

  • Elevation Beamwidth (6dB): 4 deg

  • Electrical Downtilt: 2 deg

  • ETSI Specification: EN 302 326 DN2

  • Dimensions: 700X145X79mm

  • Weight: 5.9kg

  • Wind Loading: 160 mph

  • Includes two SMA RP jack sockets for radio connections.

  • Antenna is supplied with two pigtails to connect a Rocket M5
