Ubiquiti Networks AirMax Yagi Antenna AMY-9M16 900MHz Dual Polarity High-Gain 16 dBi (QNTY 2)

AMY-9M16x2

Ubiquiti

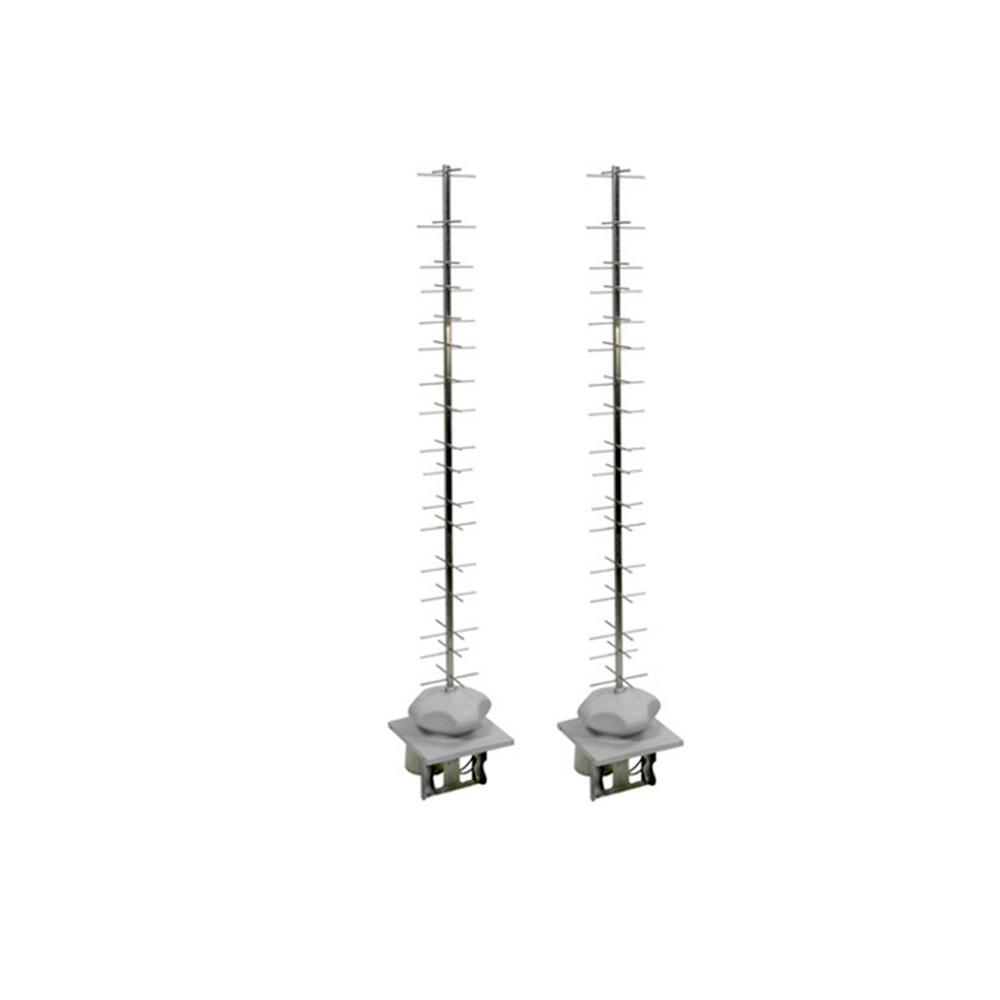

Ubiquiti Networks AirMax Yagi Antenna AMY-9M16 900MHz Dual Polarity High-Gain 16 dBi (QNTY 2)


Product Highlights
  • Extend the reach of your wireless data network with this 2-pack of AMY-9M16 900 MHz YAGI Antennas from Ubiquiti Networks.
  • This antenna operates on the 902-928 MHz frequency range and offers a gain of 16 dBi in both polarizations.
  • With dual linear polarization the antenna is capable of directing the wireless network signal in two directions rather than one like many similar antennas.
  • The antenna is also designed to hold up against harsh weather conditions as it comes equipped with an outdoor UV stabilized plastic enclosure and a pole mounting kit to withstand winds of up to 120 mph.
  • Inside the enclosure you will find a 400 MHz Atheros MIPS 24KC processor backed up by 64MB SDRAM and 8MB Flash memory to ensure smooth operation.
  • Model#: AMY-9M16x2

    Sku: IT1338.708.947304



    MSRP: $219.99

    In Stock

    Your Price: $209.00




    Model: AMY-9M16

                                        AirMax Yagi Antenna

    The airMAX 900 MHz YAGI is a high-gain array antenna designed to seamlessly integrate with the Rocket M900 radio (sold separately). It features incredible range performance (20+km) and breakthrough speed (90+Mbps real TCP/IP).

    Pair the airMAX Yagi Antenna with a RocketM900 BaseStation for directive coverage in Point-to-Point (PtP) bridging or Point-to-Multipoint (PtMP) networks. (Not Included)



    • 2x2, Dual-Polarity Design

    The airMAX Yagi Antenna is a high-gain array antenna that delivers high performance in the 900 MHz radio band.

    • Long-Range Deployments

    The airMAX® Yagi Antenna performs at ultra-long ranges in Non-Line-of-Sight (NLOS) applications.

    • Industrial-Strength Construction

    airMAX Antennas are designed with robust mechanical design for outdoor application use.

    Plug and Play Integration

    Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

    Includes:
    - Two (2) Yagi M900 Antenna
    - Mounting M8 U-bolt pole-mounting kit included
    - Two (2) RP-SMA to RP-SMA patch cables

    Product Features:
    Frequency Range: 902-928 MHz
    Dimensions: 66.5x11.6x11.6in (1690x295x295mm)
    Weight: 10.3lbs (4.65kg)
    Mounting M8 U-bolt pole-mounting kit included
    Gain: 16
    Polarization: Dual Linear
    Hpol Beamwidth: 29-34 deg
    Vpol Beamwidth: 29-34 deg.
    Cross-pol Isolation: 20dB min
    Max VSWR: 1.5:1
    F/B Ratio: 20 dB
    ETSI Specification: EN 302 326 DN2
