AMO-2G13

Ubiquiti

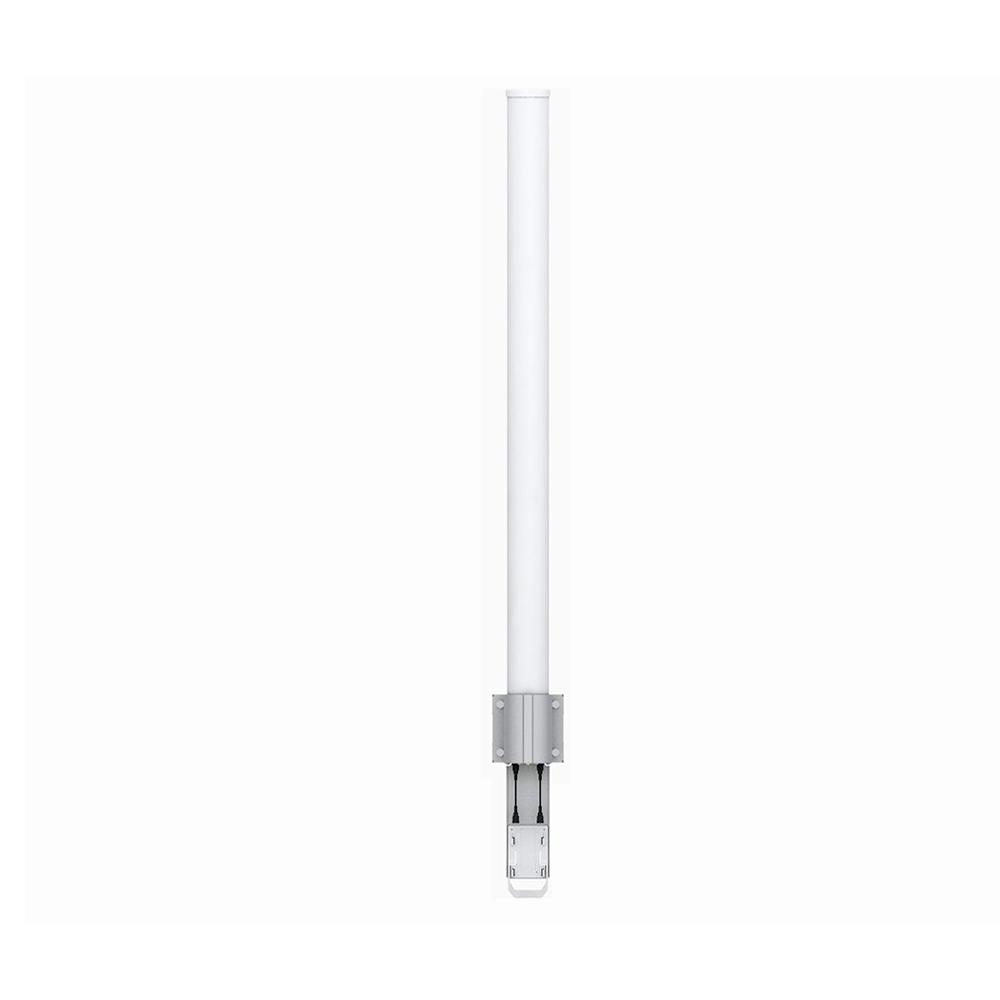

Ubiquiti Networks airMax Omni Antenna AMO-2G13 Dual Polarity 2.4GHz 2x2 MIMO 13dBi



Product Highlights
  • airMAX® Omni Antennas are the first of their kind to feature a patented, dual-polarity omni design.
  • airMAX® Omni Antennas provide 360° coverage, 2x2 MIMO performance in Line-of-Sight (LOS) or Non-Line-of-Sight (NLOS) applications.
  • airMAX® Antennas are designed with robust mechanical design for outdoor application use.
  • Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
  • AirMax Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (Rocket M sold separately).
  • Model#: AMO-2G13

    Sku: IT1330



    MSRP: $309.99

    In Stock

    Your Price: $309.99






    Model: AMO-2G13

    AirMax Omni Next-Gen 2x2 Dual Polarity MIMO Omni Antenna

    AirMax Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with
    Rocket M radios (Rocket M sold separately).Rocket M combines the “brains” in one robust unit; just pair Rocket M with AirMax
    Omni to create powerful 360° omnidirec-tional basestation. This seamless integra-tion gives network architects unparalleled
    flexibility and convenience.

    • Hi-Performance, Long Range

    • Seamlessly Integrates with Rocket M

    • 360 Degree Coverage



    • Model: AMO-2G13

    • Frequency Range: 2.35 - 2.55 GHz

    • Gain: 13 dBi

    • Elevation Beamwidth: 7 deg

    • Max VSWR: 1.7:1

    • Downtilt: 2 deg

    • Dimensions** (l x w x h): 217 x 123 x 1386 mm

    • Weight**: 2.4 kg

    • Wind Survivability: 100 mph

    • Wind Loading: 38 lb @ 100 mph

    • Polarization: Dual Linear

    • Cross-pol Isolation: 25 dB min

    • ETSI Specifiction: EN 302 326 DN2

    • Mounting: Universal pole mount, Rocket M bracket, and weatherproof RF jumpers included

    ** Dimensions and weight include pole mount; do not include Rocket M (Rocket M sold separately)





    Datasheet

    PDF File Ubiquiti Networks airMax Omni Antenna AMO-2G13 Dual Polarity 2.4GHz 2x2 MIMO 13dBi
