POE-48-24W

Ubiquiti

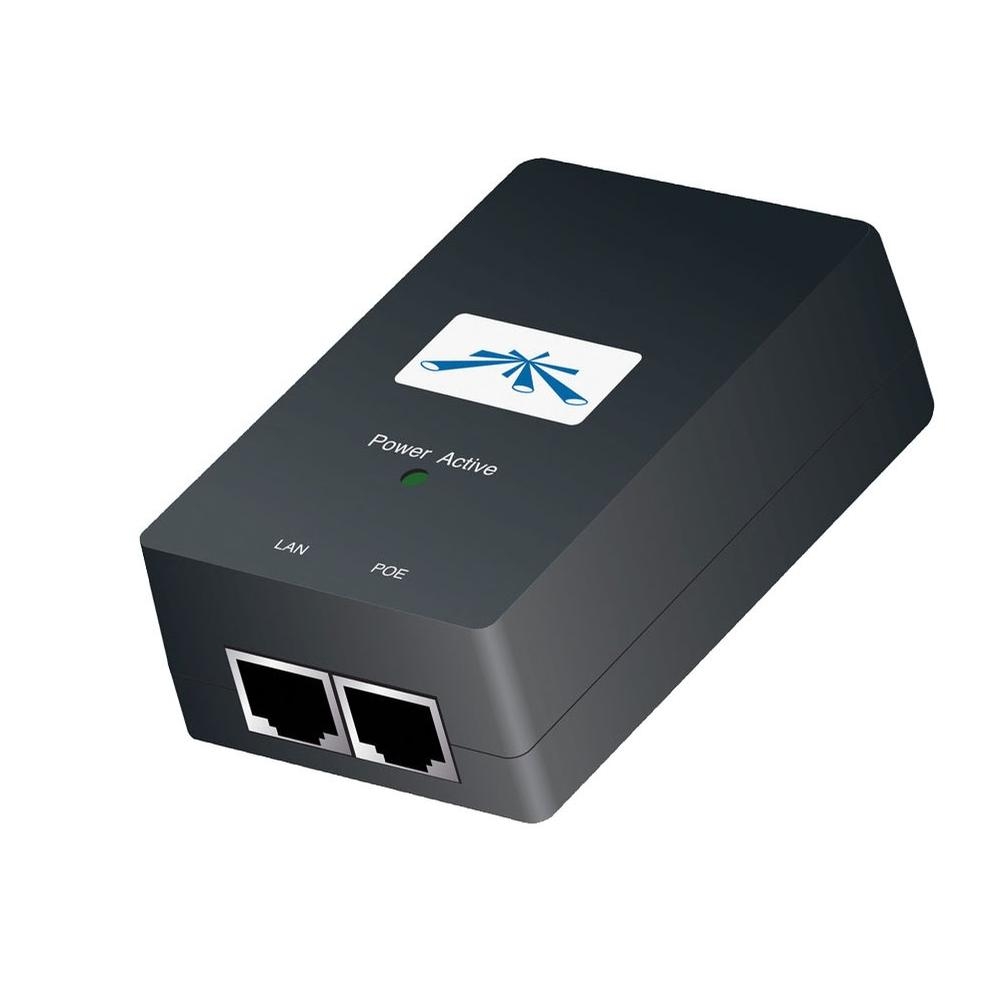

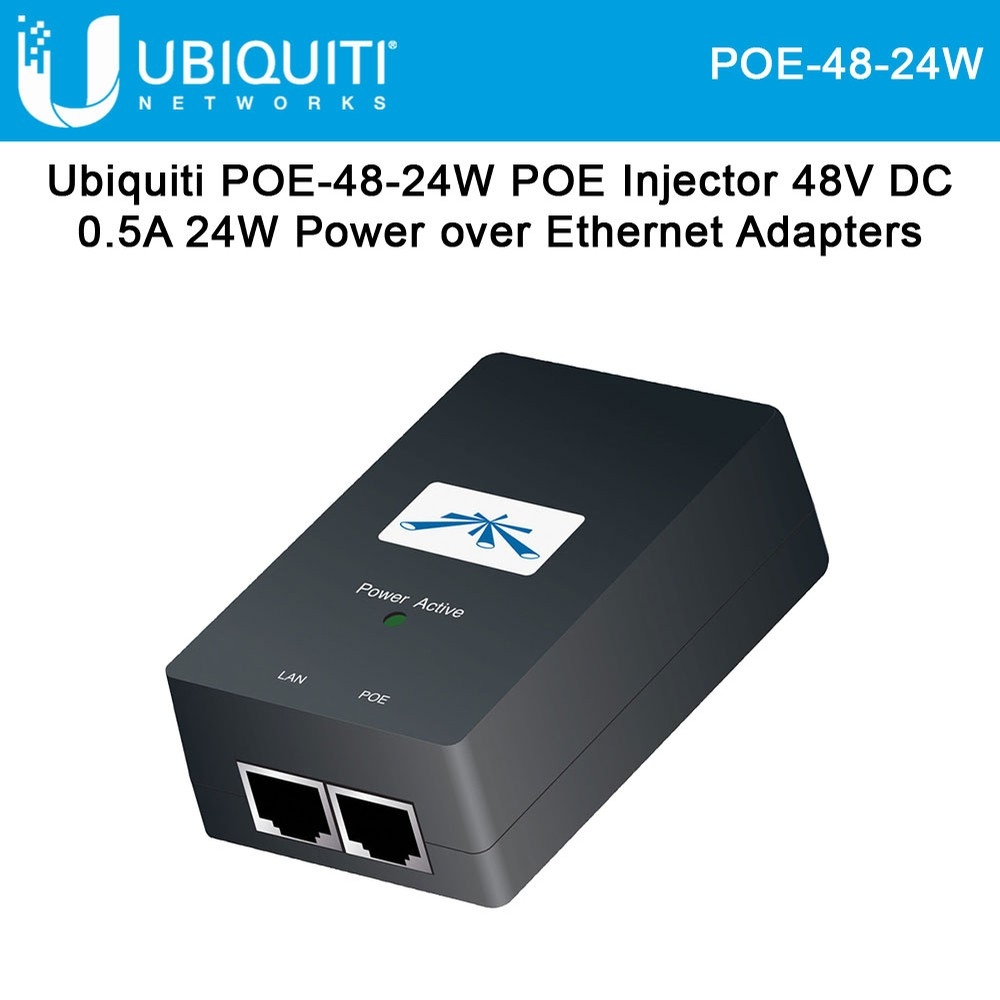

Ubiquiti Networks POE-48-24W 48V PoE 0.5A w/US Power Cord


Model#: POE-48-24W

Sku: IT1319



MSRP: $12.99

In Stock

Your Price: $12.99






MODEL: POE-48-24W

POE ADAPTER WITH POWER CORD, US-STYLE PLUG

The POE48 series 4 channel PoE crossover and power insertion card is designed for use with the CX254 and the CX452 modular card cage (purchase separately).

The POE48 crossover and power insertion card is a unique component of the UTPLinks system. The POE48 card can provide power for up to four PoE cameras. The POE48 also provides the means to connect the four IP cameras to a network device; i.e. hub, switch, etc. Up to five POE48 cards may be plugged into a CX254 or the CX452 chassis to power a total of twenty cameras, or any combination of.In this way the UTPLinks system may be used to power and crossover bothIP and standard analog cameras in the same structured cabling network. The CX254 and the CX452 are 1 RU card cages (purchase separately).

Device Protection

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting

The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway™ Compatibility

The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.

Specifications POE-48-24W

Output Voltage 48V DC @ 0.5A
Input Voltage 100-240VAC @ 50/60Hz
Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency 80+%
Output Ripple 1% Max
Switching Frequency 65 kHz
Line Regulation ± 1%
Load Regulation ± 3%
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
Dimensions 88 x 57 x 33 mm
(3.47 x 2.24 x 1.30")
Weight 4.78 oz
135.5 g (4.78 oz)
AC Connector IEC-320 C6
Data IN / PPOE RJ45 Shielded Socket
80% Current Indicator Power LED will change color
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000uS) Data
Shunt Capacitance <5pf data
Response Time <1nS
Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B

Datasheet

PDF File Ubiquiti Networks POE-48-24W 48V PoE 0.5A w/US Power Cord
