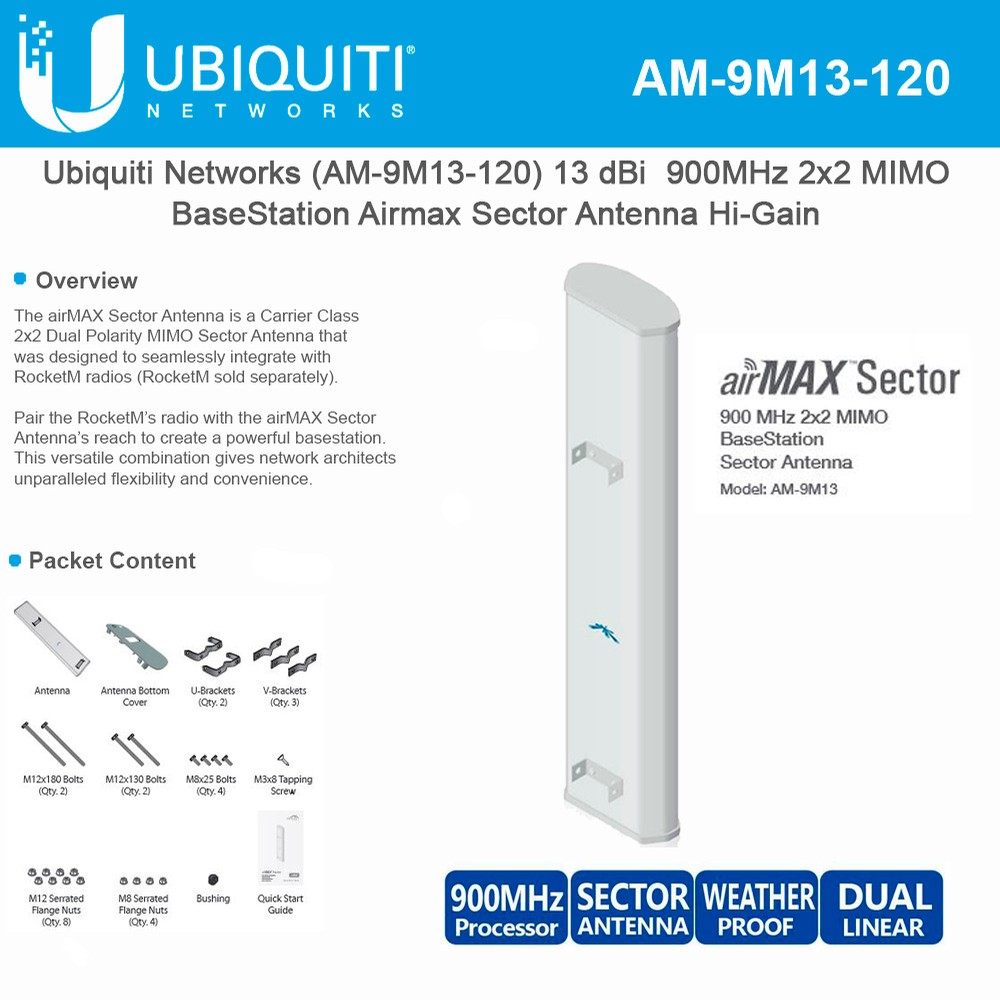

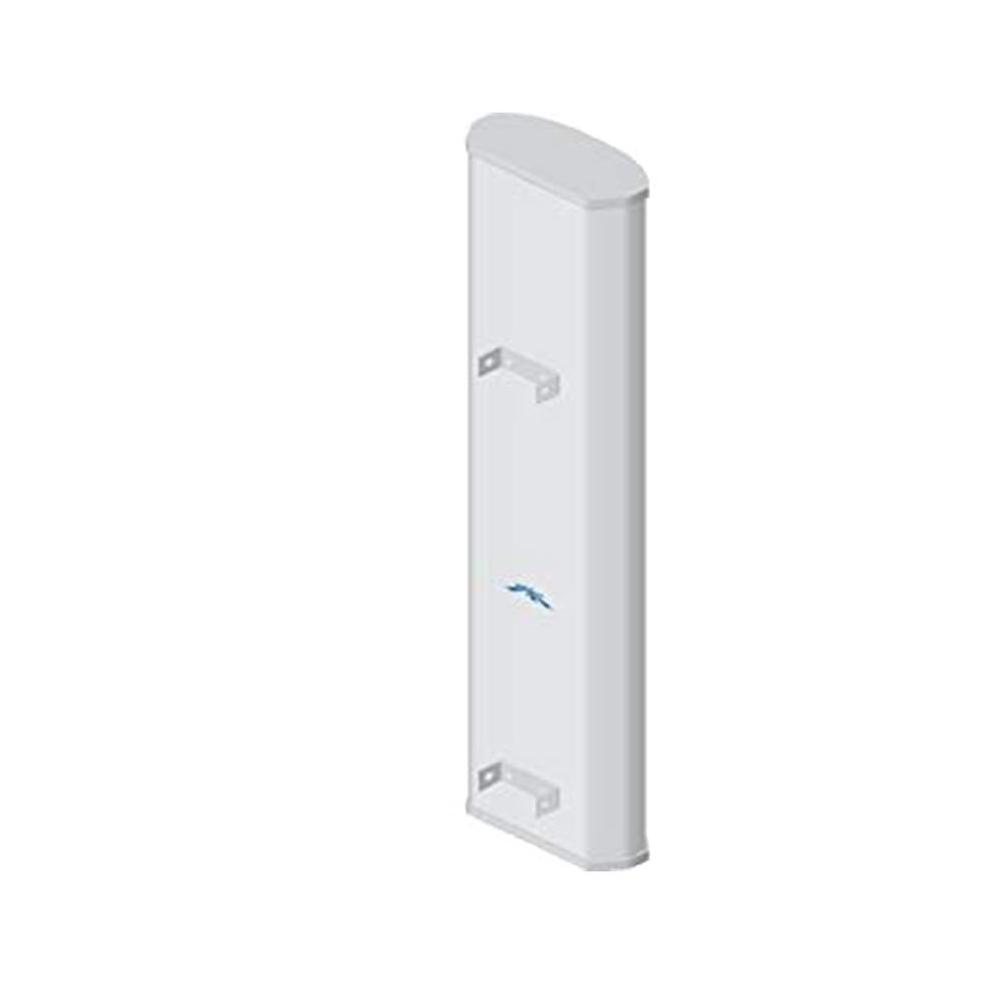

Ubiquiti airMAX AM-9M13-120 2x2 BaseStation Sector Antenna 900MHz 13dBi

AMS 900-120-13

Ubiquiti
Ubiquiti Network airMAX Sector AM-9M13-120 900Mhz MIMO Basestation Sector Antenna pair with RocketM900


Product Highlights
  • The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).
  • Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation.
  • This versatile combination gives network architects unparalleled flexibility and convenience.
  • Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world.
  • Instantly pair with Rocket M9 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
  • Model#: AMS 900-120-13

    Sku: IT1315.362.476030



    MSRP: $269.00

    Out of stock

    Your Price: $269.00


    Model: AM-9M13-120

    Ubiquiti AM-9M13-120 900MHz AirMax Sector Antenna 13dBi, 120 degree, Dual-Polarity, Hi-Gain Sector 900-120-13. World Class Antenna Designs, Rocket M900 Seamlessly Integrates with AirMax BaseStation Sectors.

    Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M9 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

    Rocket M and AirMax BaseStation Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

    • Frequency Range: 902-928 MHz
    • Gain: 13.2-13.8dBi
    • Polarization: Dual Linear
    • Cross-pol Isolation: 30dB min
    • Max VSWR: 1.5:1
    • Hpol Beamwidth (6dB): 109 deg.
    • Vpol Beamwidth (6dB): 120 deg.
    • Elevation Beamwidth: 15 deg.
    • Electrical Downtilt: N/A
    • ETSI Specification: N/A
    • Dimensions: 50.8 x 11.4 x 5.3in (1290 x 290 x 134mm)
    • Weight: 27.6lbs (12.5kg)
    • Windloading: 160 mph
