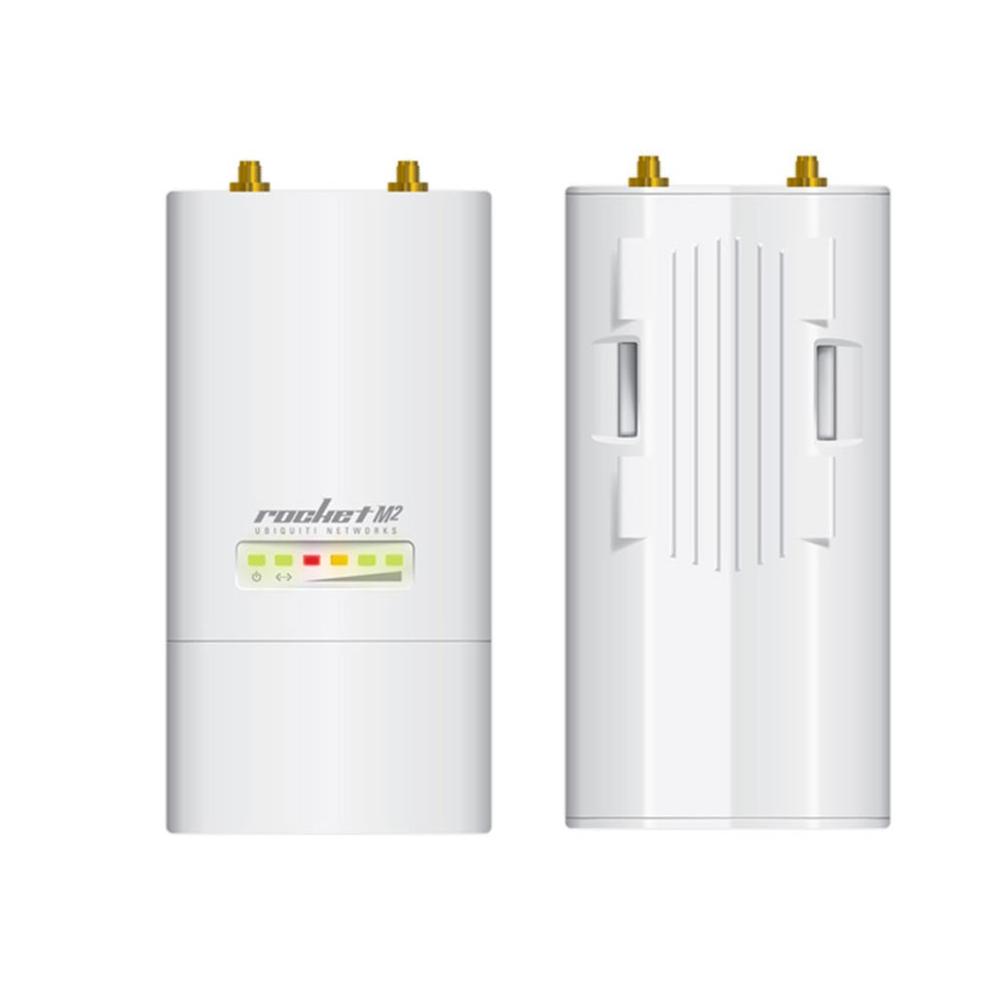

The RocketM2 2.4 GHz 2x2 MIMO airMAX BaseStation from Ubiquiti Networks features a mix-and-match industrial design, that supports speeds of up to 150+ Mb/s real TCP/IP throughput. It is suitable for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications.The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.
Rocket M and airMAX Rocket antennas have been designed to seamlessly work together. Installing Rocket M on airMAX Rocket antennas requires no special tools, you simply snap it into place with the mount provided with the antennas.
The 2.4 GHz frequency band is free to use, however, it is crowded due to interference from other wireless devices. Also, there are only three non-overlapping, 20 MHz channels available for use. The Rocket enclosure is built to survive harsh environments and fits the Rocket mount built into every airMAX antenna. You can pair the rocket with the appropriate antenna for your PtP link or PtMP network.
Built upon an intuitive user interface foundation, airOS 5 is an advanced operating system for Ubiquiti airMAX product. airOS provides additional advantages, including protocol support, long-range PtP link mode, automatic/manual transmit power control, automatic distance selection (ACK timing), device statistics, and diagnostic tools.
Integrated airView provides advanced spectrum analyzer functionality such as waterfall, waveform, and real-time spectral views that allow operators to identify noise signatures, and plan their networks to minimize noise interference. Waterfall aggregates energy over time for each frequency. Waveform aggregates energy collected. Real-time feature shows energy in real time as a function of frequency. Recording automates airView to record and report results.
airControl is a powerful and intuitive, Web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices. It features network map, monitor device status, mass firmware upgrade, Web UI access, management of groups of devices, and task-scheduling.
Ubiquiti AIRMAX Rocket M2 RocketM2 802.11N MIMO 2.4 Ghz Rocket AP 2.4GHz Hi Power 2x2 MIMO AirMax TDMA BaseStation
Processor Specs: Atheros MIPS 24 KC, 400MHz
Memory Information: 64MB SDRAM, 8MB Flash
Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: YES
RF Connector: 2x RP-SMA (Waterproof)
Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)

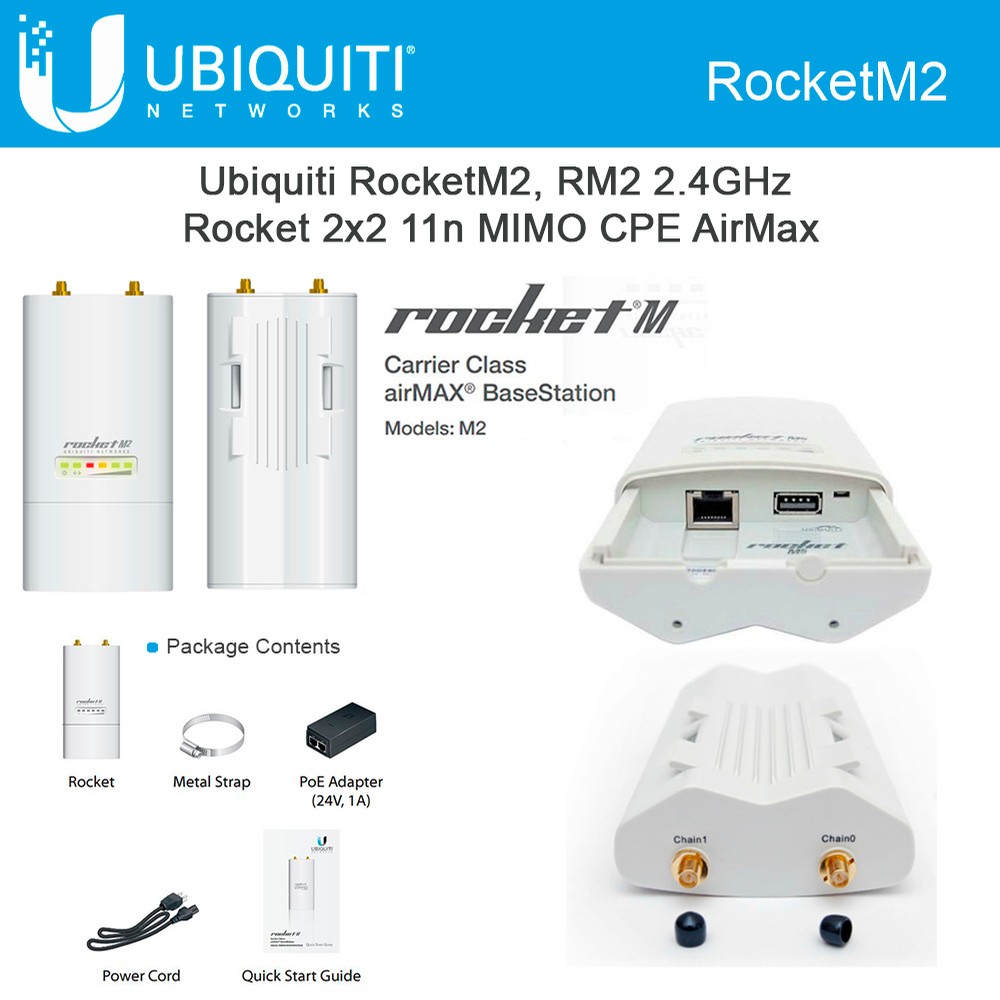

24V PoE Adapter and Power Cord
Mount and mounting strap
120 Degree 2.4GHz MIMO 15dBi w/cables
90 Degree 2.4GHz MIMO 16dBi w/cables
AMO-2G10 2GHz AirMax Dual Omni, 10dBi
NSM2 Nano Station MIMO 2.4 GHz
LocoM2 NanoStation Loco M2
NB-2G18 NanoBridge M Series, 2GHz 18dBi dual pol
AG-2G16-HP 2.4GHz AirGrid, AIRMAX, 16dBi (24v)11x14
