Ubiquiti Rocket Dish Antenna RD-5G34 airMAX 2x2 PtP Bridge Dish Antenna Point to Point PtP 5GHz 34dB

RD-5G34

Ubiquiti

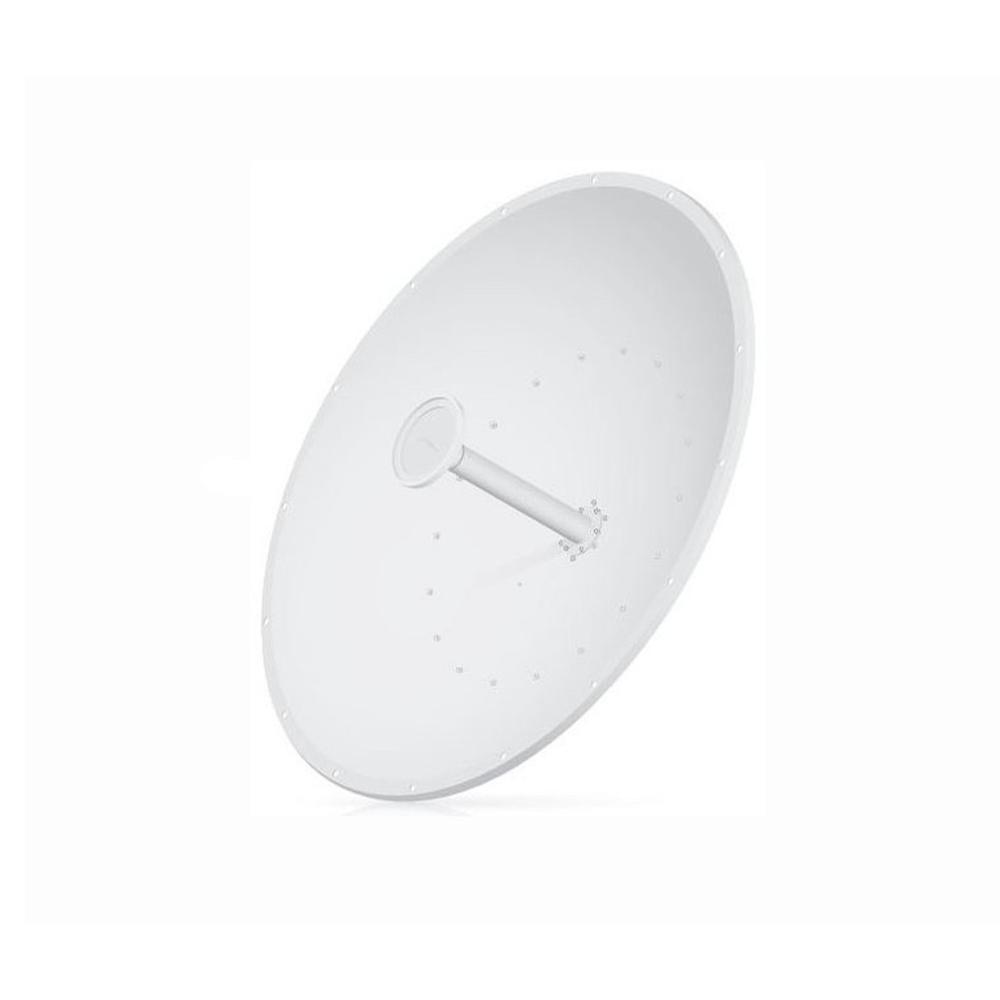

Ubiquiti Networks Rocket Dish Antenna RD-5G34 airMAX 2x2 PtP Bridge Dish Antenna Point to Point PtP 5GHz 34dBi

Model#: RD-5G34

Sku: IT1307.336.439152



MSRP: $329.00

Out of stock

Your Price: $329.00


Model: RD-5G34

                         airMAX 2x2 PtP Bridge Dish Antenna

  •                                                      Rocket Dish Antenna

Ubiquiti Networks RD-5G34 is a RocketDish operating between 4.9 and 5GHz, with a 34dBi gain. This parabolic dish antenna is designed to work with the Rocket M5.

The Ubiquiti RocketDish Antenna has been designed to seamlessly work together with the Ubiquiti Rocket M5 or MikroTik UBTik™ for an instant long range powerful PtP Link. Installing the Rocket M5 or the MikroTik UBTik™ onto the RocketDish Antenna requires no special tools, you simply snap it into place with the mounts provided.



  • Breakthrough Design and Performance

The powerful airMAX RocketDish Antennas feature carrier-class construction and 2x2, dual-polarity performance.

  • Frequency Range: 4.90-5.90 GHz

  • Gain: 32.1-34.2dBi

  • Polarization: Dual Linear

  • Cross-pol Isolation: 35dB min

  • Max VSWR: 1.4:1

  • Hpol Beamwidth (3dB): 3 deg.

  • Vpol Beamwidth (3dB): 3 deg.

  • F/B Ratio: -42dB

  • ETSI Specification: EN 302 326 DN2

  • Dimensions: 38.3in (972mm) diameter

  • Windloading: 256lb @ 100mph

  • Weight: 44.1lbs (20kg)

  • Wind Survivability: 125 mph
