AM-5G16-120

Ubiquiti

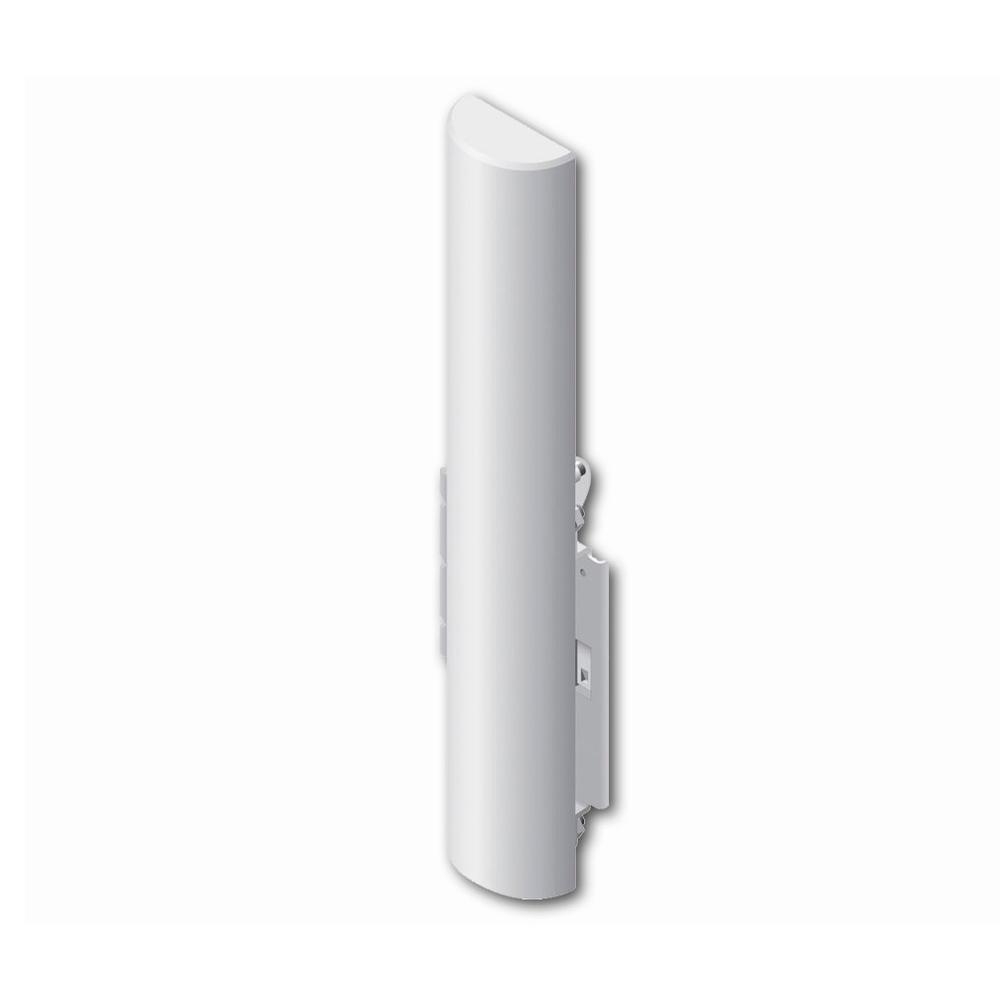

Ubiquiti Networks AM-5G16-120 5GHz airMAX 120° Sector 16dBi


Model#: AM-5G16-120

Sku: IT1304



MSRP: $79.99

In Stock

Your Price: $79.99






Model: AM-5G16-120

Ubiquiti airMAX AM-5G16 is 120° dual-polarity sector antenna operating on 5GHz spectrum with a 16dBi gain. It works well with the Rocket M5 radio.

  • World Class Antenna Designs

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beam shaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful airMAX 2x2 MiMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.


  • AirMax BaseStation 5GHz Sector

  • Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world.

  • Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

  • Rocket M Seamlessly Integrates with AirMax BaseStation Sectors

  • Frequency Range: 5.10-5.90 GHz

  • Gain: 15.0-16.0dBi

  • Polarization: Dual Linear

  • Cross-pol Isolation: 22dB min

  • Max VSWR: 1.5:1

  • Hpol Beamwidth (6dB): 137 deg.

  • Vpol Beamwidth (6dB): 118 deg.

  • Elevation Beamwidth: 8 deg.

  • Electrical Downtilt: 4 deg.

  • ETSI Specification: EN 302 326 DN2

  • Dimensions: 14.5x2.5x1.6in (367x63x41mm) diameter

  • Weight: 2.4lbs (1.1kg)

  • Windloading: 120 mph
