AM-5G17-90

Ubiquiti

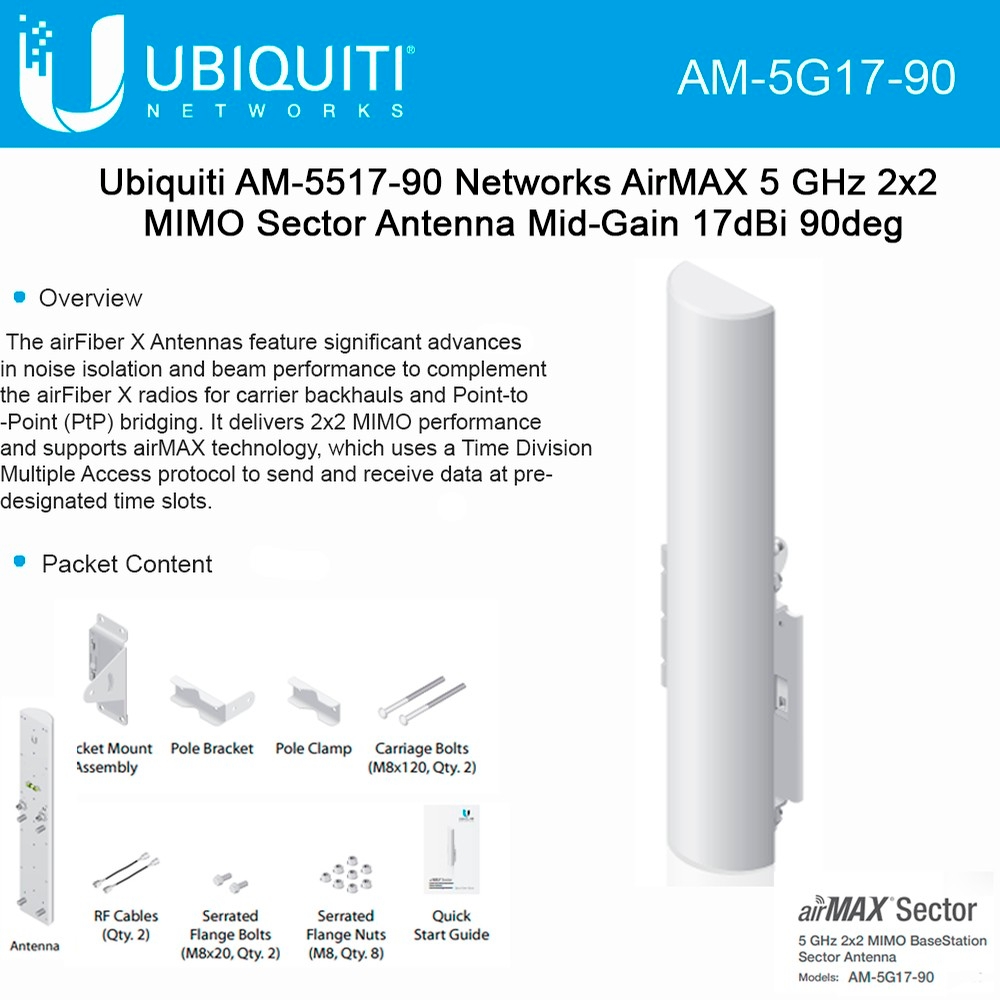

Ubiquiti AM-5G17-90 5GHz AirMax Sector 5G-17-90 Mid-Gain 17dBi 90deg 5G-90-17 pairs w/RocketM5


Product Highlights
  • The AM-5G17 is a Ubiquiti Networks airMAX sectorized antenna with a 90° beamwidth, 17dbi gain, and operates on 5GHz spectrum. Ideal antenna for Rocket M5.
  • Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world.
  • Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Mounting (for the Rocket M5) and weatherproof RF jumpers included.
  • Rocket M5 and AirMax BaseStation Antennas have been designed to seamlessly work together.
  • Installing Rocket M5's on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

    • Model#: AM-5G17-90

    Sku: IT1302



    MSRP: $99.95


    Out of stock

    • Ubiquiti AirMax BaseStation AM-5G17-90 Ubiquiti 5GHz 17dBi 90 degree MIMO AirMax BaseStation Sector Antenna and bracket system

    • World Class Antenna Designs

    • Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

    • Rocket M Seamlessly Integrates with AirMax BaseStation Sectors

    • Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

    • Frequency Range: 5.10-5.90GHz

    • Gain: 16.1-17.1dBi

    • Polarization: Dual Linear

    • Cross-polarization Isolation: 22dB min

    • H-Pol beamwidth (6 dB): 72 deg

    • V-Pol beamwidth (6 dB): 93 deg

    • Elevation Beamwidth (6dB): 8 deg

    • Electrical Downtilt: 4 deg

    • ETSI Specification: EN 302 326 DN2

    • Dimensions: 367X63X41mm

    • Weight: 1.1kg

    • Wind Loading: 120 mph

    • Includes two SMA RP jack sockets for radio connections.

    • Antenna is supplied with two pigtails to connect a Rocket M5
