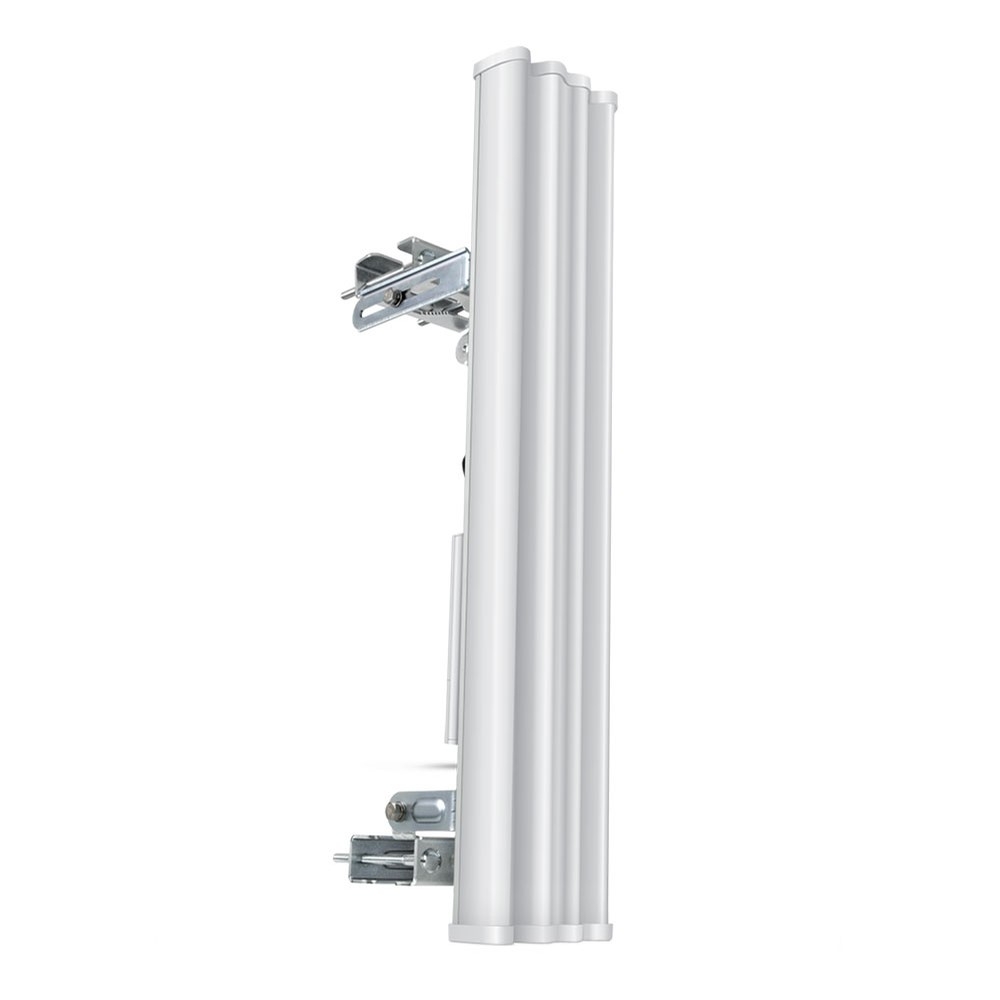

Ubiquiti Networks AM-5G20-90 5GHz airMAX 90° Sector 20dBi

Product Highlights
  • Ubiquiti AirMax Sector Antenna AM-5G20-90 5GHz 2x2 MIMO AirMax Basestation 20dBi 90degree pairs w/ RocketM5
  • Pair the airMAX Sector Antenna with a Rocket M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
  • Highly resistant to noise interference, the airMAX Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
  • The versatile airMAX Sector model feature advanced RF isolation and adjustable beamwidth option 90°
  • Every airMAX Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
  • Model#: AM-5G20-90

    Sku: IT1301

    MSRP: $169.99

    In Stock

    Your Price: $169.99

    Model: AM-5G20-90

    Ubiquiti AirMax 5.15-5.85GHZ Hi-Gain Base Station Antenna, Dua-Pol 90-Degree 20DBI

    AirMax BaseStation 5GHz Sector World Class Antenna Designs Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

    Rocket M Seamlessly Integrates with AirMax BaseStation Sectors Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

    Specifications AM-5G20-90

    Frequency Range 5.15-5.85 GHz
    Gain 19.4-20.3dBi
    Polarization Dual Linear
    Cross-pol Isolation 28dB min
    Max VSWR 1.5:1
    Hpol Beamwidth (6dB) 91 deg.
    Vpol Beamwidth (6dB) 85 deg.
    Elevation Beamwidth 4 deg.
    Electrical Downtilt 2 deg.


    PDF File Ubiquiti Networks AM-5G20-90 5GHz airMAX 90° Sector 20dBi
