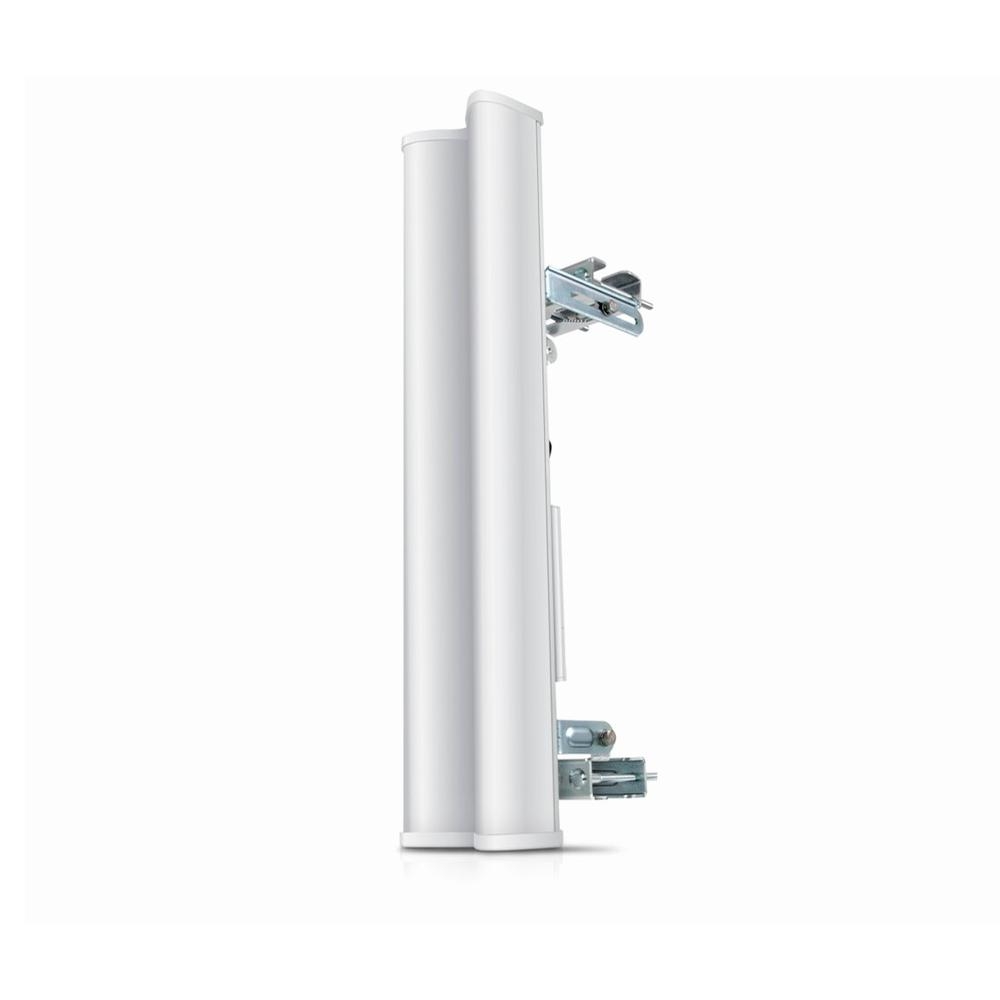

Ubiquiti Networks AM-2G15-120 2.4GHz airMAX 120° Sector 15dBi

Product Highlights
  • Ubiquiti Networks AM-2G15 is a dual-pol sector antenna with a 120° beamwidth operating on the 2.4GHz spectrum, with a 15dBi gain. Designed to work with Rocket M2
  • Patent-pending next-generation technology achieves gain, cross-polarity isolation, and beam-shaping characteristic only of the highest-quality cellular carrier basestation antennas in the world.
  • Instantly pair with Rocket M2 to create a powerful AirMax 2x2 MIMO PtMP BaseStation.
  • Mounting for the Rocket M2 and weatherproof RF jumpers included.
  • The Rocket M2 and AirMax BaseStation Antennas have been designed to seamlessly work together.
  • Model#: AM-2G15-120

    Sku: IT1299

    MSRP: $169.99

    Out of stock

    Your Price: $169.99

    Model:  AM-2G15-120

    AirMAX Sector Antenna

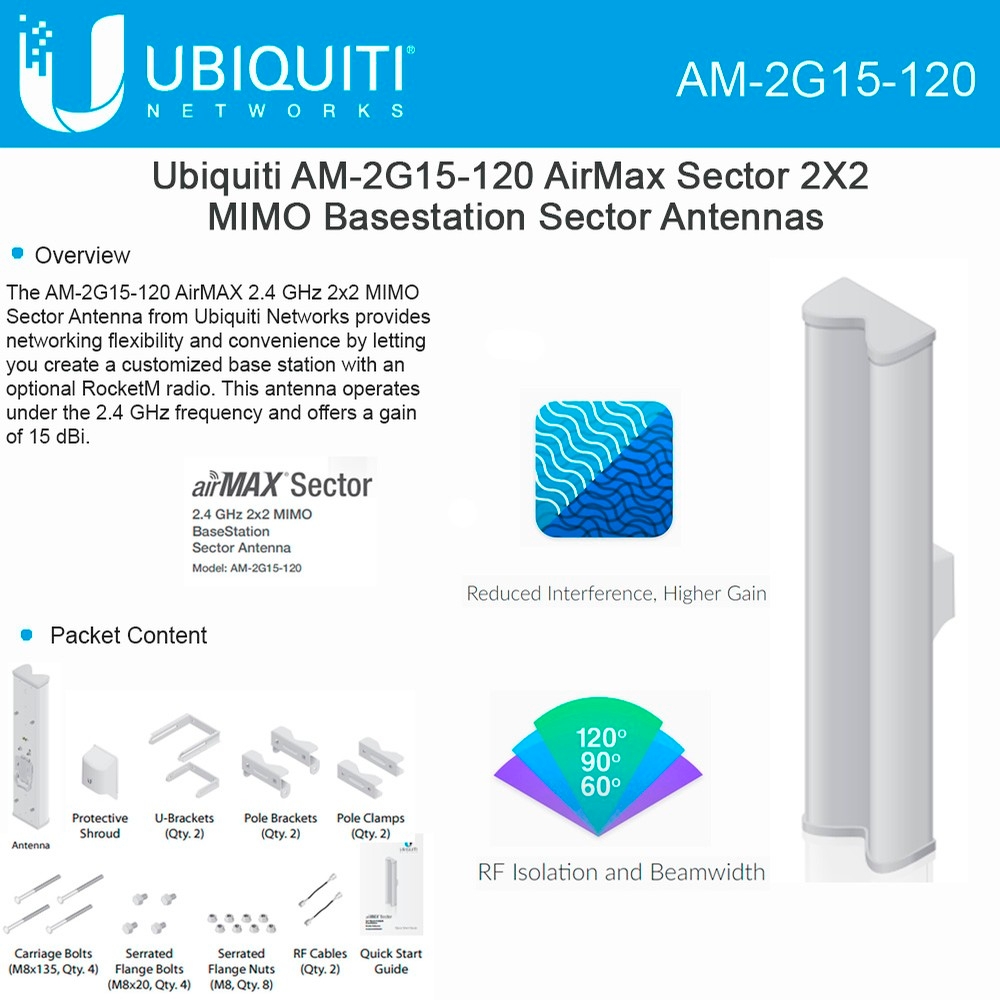

    The AM-2G15-120 AirMAX 2.4 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 2.4 GHz frequency and offers a gain of 15 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

    • Seamlessly integrates with RocketM radios
    • Remarkable cross-polarization isolation
    • Intelligent QoS: Priority is given to voice/video for seamless streaming
    • Scalability: High capacity and scalability
    • Long Distance: Capable of high-speed, carrier-class links
    • Up to 100 airMAX clients can be connected to an airMAX sector antenna
    • Frequency Range: 2.3-2.7 GHz

    • Gain: 15.0-16.0dBi

    • Polarization: Dual Linear

    • Cross-pol Isolation: 28dB min

    • Max VSWR: 1.5:1

    • Hpol Beamwidth (6dB): 123 deg.

    • Vpol Beamwidth (6dB): 118 deg.

    • Elevation Beamwidth: 9 deg.

    • Electrical Downtilt: 4 deg.

    • ETSI Specification: EN 302 326 DN2

    • Dimensions: 27.6x5.7x3.1in (700x145x93mm) diameter

    • Weight: 4.0kg

    • Windloading: 160 mph



    802.11N MIMO 2.4 GHz Rocket AP
