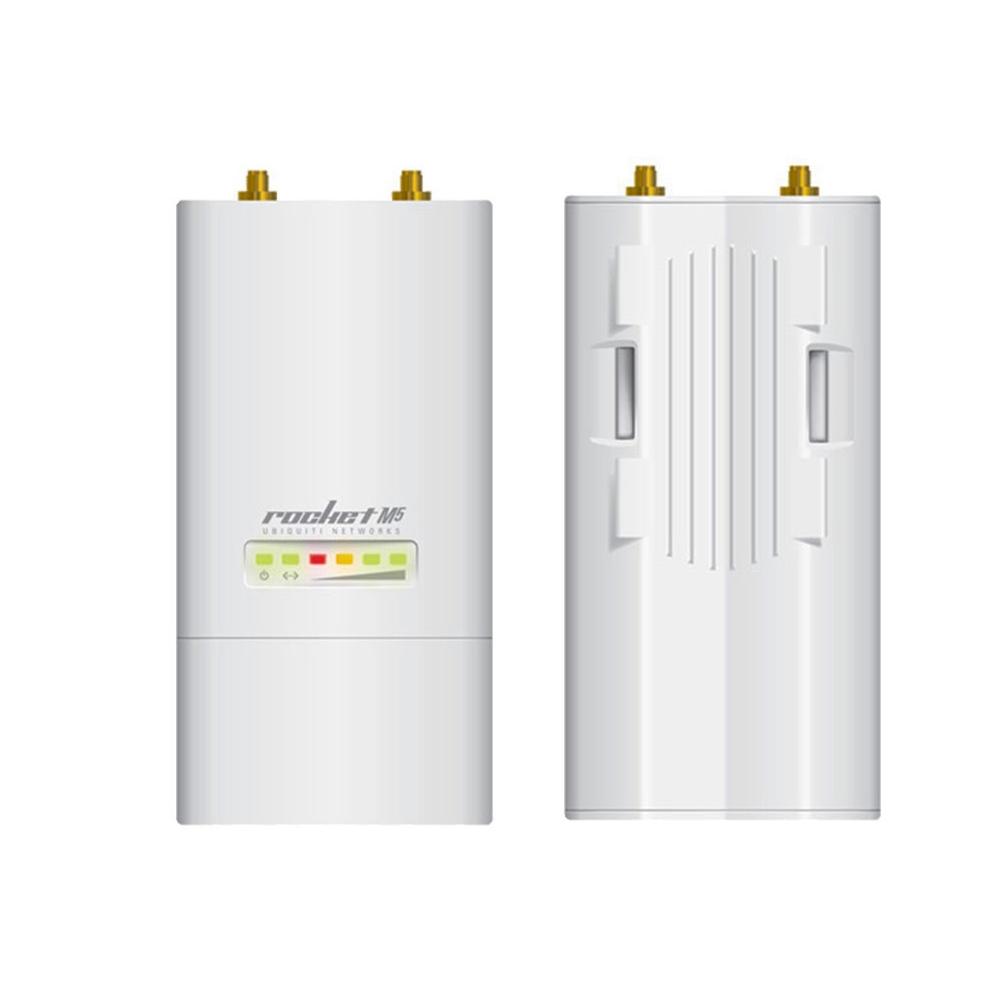

Rocket M5

Ubiquiti


Ubiquiti Networks airMAX BaseStation RocketM5 US 5GHz Hi Power 2x2 MIMOTDMA Outdoor


Model#: Rocket M5

Sku: IT1298



MSRP: $89.00


Out of stock

Model: RocketM5

                               Rocket M airMAX BaseStation

Featuring enhanced radio performance and mix-and-match industrial design, the Rocket M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.

The Rocket is a hi-power, linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications. Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.



  • Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

  • Frequency and Channel Flexibility

Built to survive harsh environments, the Rocket™M is available in several frequency models and supports multiple channel bandwidths, depending on the specific model and local country regulations.

  • Spectrum Analysis Tools

The airView Spectrum Analyzer allows operators to identify noise signatures and analyze frequency usage and activity levels onsite, so new access points can be set up on the least-used channels to optimize wireless performance.



RocketM5

  • 5 GHz
  • 160 x 80 x 30 mm (6.30 x 3.15 x 1.18")
  • Outdoor UV Stabilized Plastic
  • Processor MIPS 74Kc
  • 128 MB SDRAM, 8 MB Flash
  • (1) 10/100 Mbps
  • (2) RP-SMA (Waterproof)
  • Atheros MIPS 24KC, 400MHz
  • 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
  • 24V, 1A POE Supply included
  • Operation mode AP, Client, WDS
  • Frequence 5,47 - 5,825 GHz
  • DHCP yes
  • Transmission speed 150 Mbps
  • Standards 802.11a/n
  • Chipset Atheros
  • Output for an external antenna 2x rev. SMA male
  • TX Power regulation yes
  • Sensitivity -96 dBm
  • Modulation OFDM
  • Encryption WEP 64/128/152, WPA, WPA2, 802.1X
  • LAN port 1x RJ45 10/100 Mbps
  • Default IP 192.168.1.20
  • Default name ubnt
  • Default password ubnt
  • Operational temperature -30 - 75 °C
  • Dimension 160 x 80 x 30 mm
  • Interface LAN, WiFI
  • Supported OS AirOS V
  • Max. power 27 dBm
  • RAM 64 MB
  • NAND 8 MB
