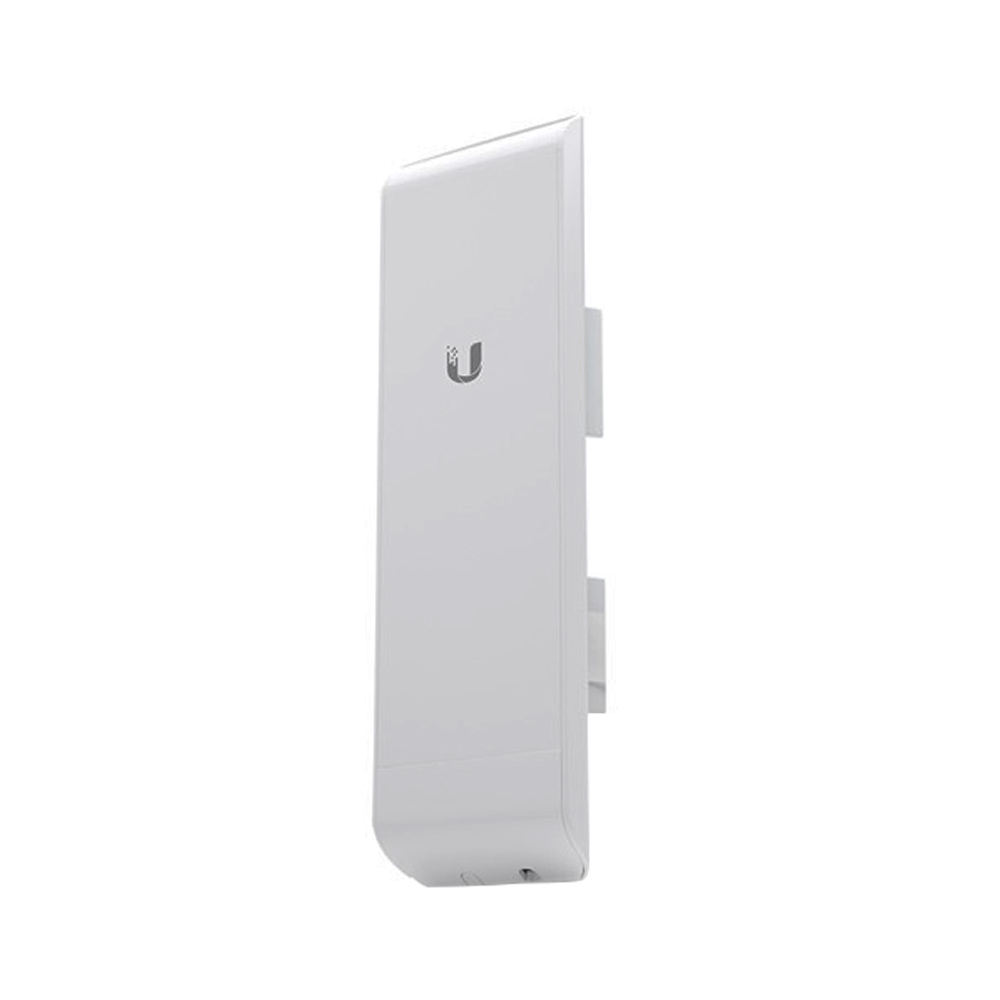

NanoStation M2


Ubiquiti Networks NanoStation M NSM2 US 2.4GHz 2x2 MIMO Indoor/Outdoor airMAX CPE Router 802.11n

Model#: NanoStation M2

Sku: IT1297

MSRP: $99.00

Out of stock

Model: NSM2-US

                                    NanoStation M

                                       Indoor/Outdoor airMAX CPE

  • Ubiquiti NanoStation M2 2.4GHz Hi Power 2x2 MIMO AirMax TDMA Station

  • The Most Powerful NanoStation Ever.

  • POE power supply injector included

  • The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE.

  • The new NanoStation M takes the same concept to the future with new redesigned sleek and elegant form-factors.

  • New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz.

  • Both antennas are optimized for cross-polarity isolation and fit into a compact form-factor.

  • The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.

  • Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.

  • In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti's instant 802.3af adaptor.

uiti Nanostation M2 NSM2


  • Processor Specs: Atheros MIPS 24KC, 400MHz

  • Wirelesss: 2Ghz Atheros, 27dBm Adjustable down to 8dBm., AES Encryption

  • Memory Information: 32MB SDRAM, 8MB Flash

  • Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Passthrough

  • Mounting Kit: Pole Mounting Kit Included, Optional Wall Mounting Kit

  • Operating Temperature: -30C to +80C

  • Power Method: Passive PoE

  • Power Consumption: 8 Watts

  • Power supply: Power Injector 110-240VAC 15VDC .8A US-style plug

  • Size: 29.4 cm x 8 cm x 3cm, Weight: .4kg

  • Approvals: FCC Part 15.247, IC RS210, CE

  • RoHS Compliance: YES
