Ubiquiti LiteStation-SR71 LS-SR71 Embedded Platform works wiht SR71-15, SR71-E

Model#: LS-SR71

Sku: IT1293

MSRP: $79.99

Out of stock

Model: LS-SR71

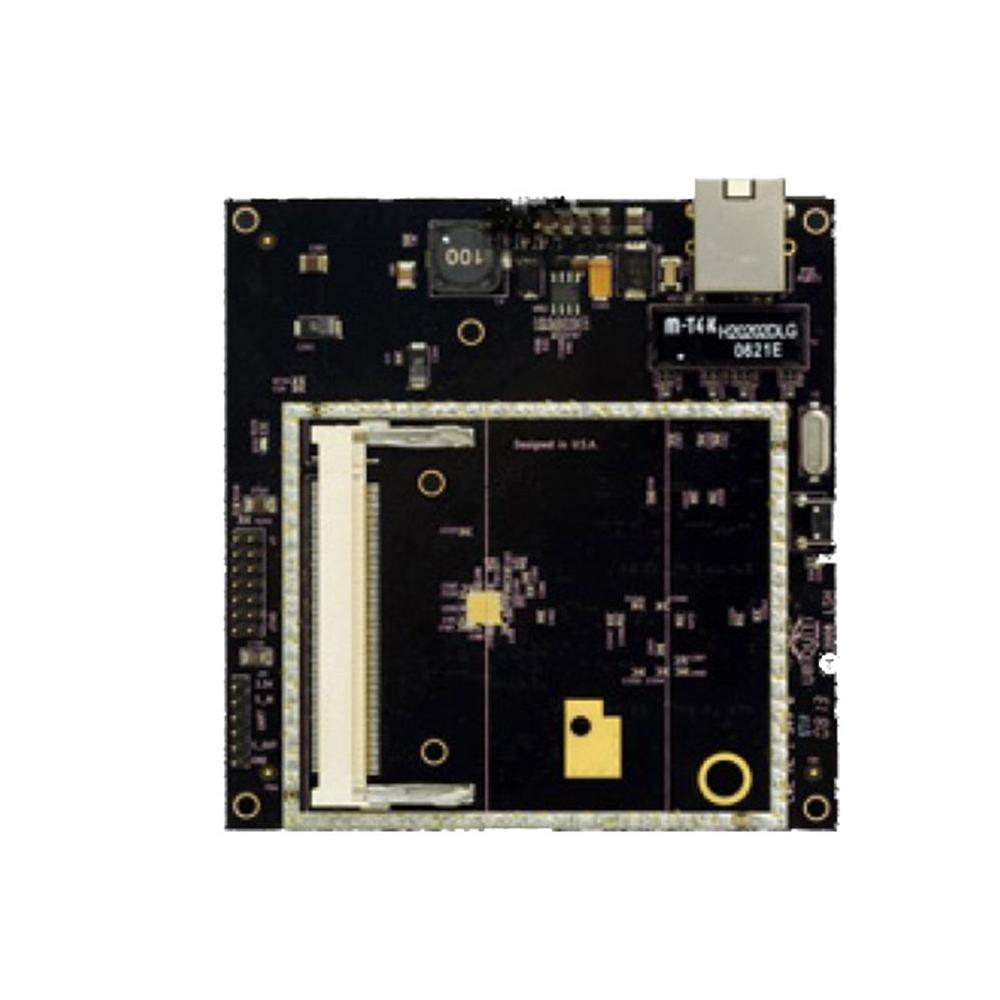

  • Ubiquiti LiteStation-SR71 PCB 1MiniPCI 2 Ethernet LS-SR71

  • Ubiquiti's LiteStation-SR71 provides a powerful and robust platform to utilize any of Ubiquiti's SR71 radio modules.

  • Featuring a powerful 300MHz processor, isolated radio shielding, extended operating temperature and custom firmware capable of auto-detecting special frequency Ubiquiti cards.

  • LiteStation-SR71 can be used to instantly create a powerful radio router with virtually any frequency operation from DC to 6GHz.

  • Processor Specs: Atheros AR7131 MIPS 300MHz
  • Memory Information: 32MB SDRAM, 8MB Flash
  • Serial Interface: On board RS232 with DB9 conenctor
  • PCI Support: 32-bit mini-PCI Type IIIA
  • Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
  • Approvals: FCC,CE
  • RoHS Compliance: YES
  • Dimensions: 4.2 in. length x 3.5 in. height x 0.6 in. width
  • Weight: 0.2 lbs
  • Max Power Consumption: 4 Watts
  • Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
  • DC Voltage Rating: 5-24V (18V max recommended)
  • ESD/EMP Protection: Transient Voltage Supression at POE port
  • Operating Temperature: -40C to 85C (System PCB optimized for hi-temp)
  • System LED's: Power, LAN, WAN
  • Antenna Align / Sig Strength LED's: Software adjustable to corresponding to custom RSSI levels
