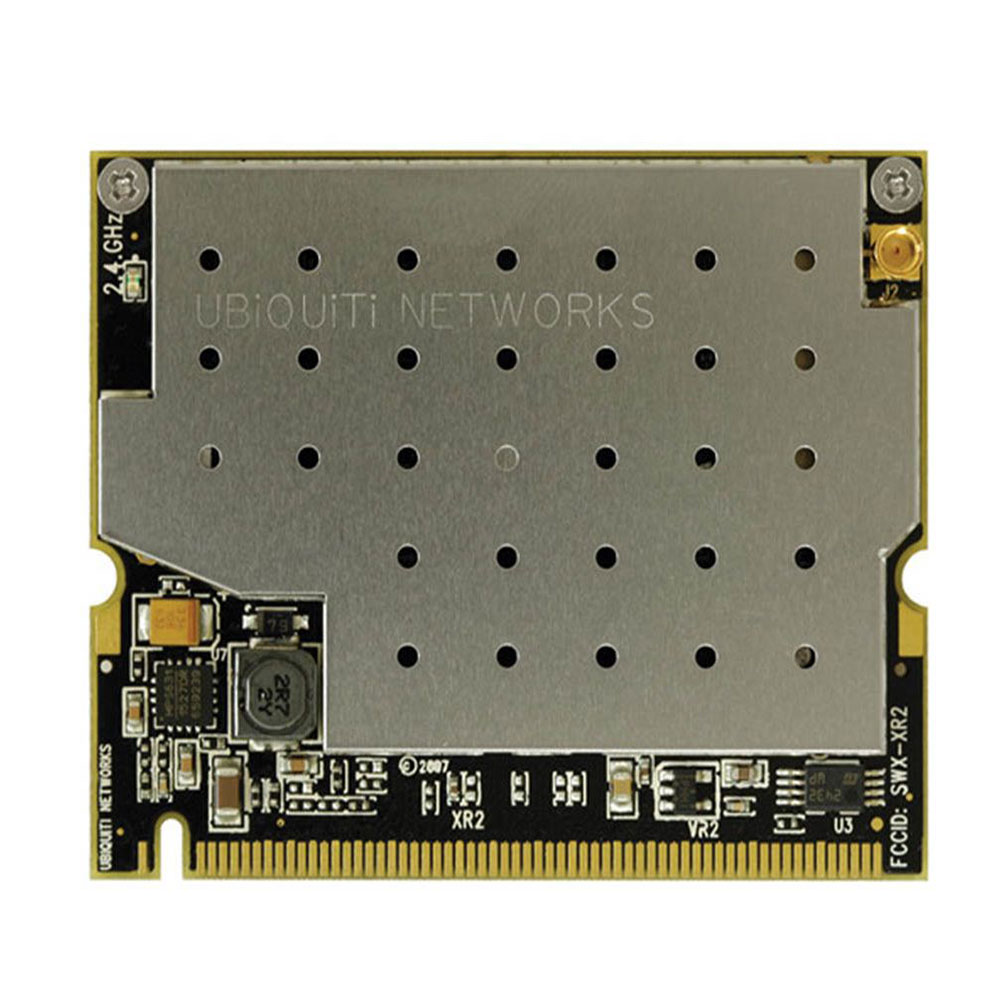

Ubiquiti XR2 XtremeRange 2 Carrier Class High Performance mini-PCI 600mW 2.4GHz 11b/g MMCX Connector

XR2

Ubiquiti
Ubiquiti XR2 XtremeRange 2 Carrier-Class WiFi 2.4GHz 802.11b/g Radio Module , Designed to Link Farther and Faster , Atheros , 6th Generation , AR5414 , 600mW Output Power , MMCX Connector , HeatSink , Built for Industrial and Rugged Applications .

Model#: XR2

Sku: IT1286.7.9002



MSRP: $119.99

In Stock

Your Price: $98.70




Model:XR2

                                         Xtreme Range2

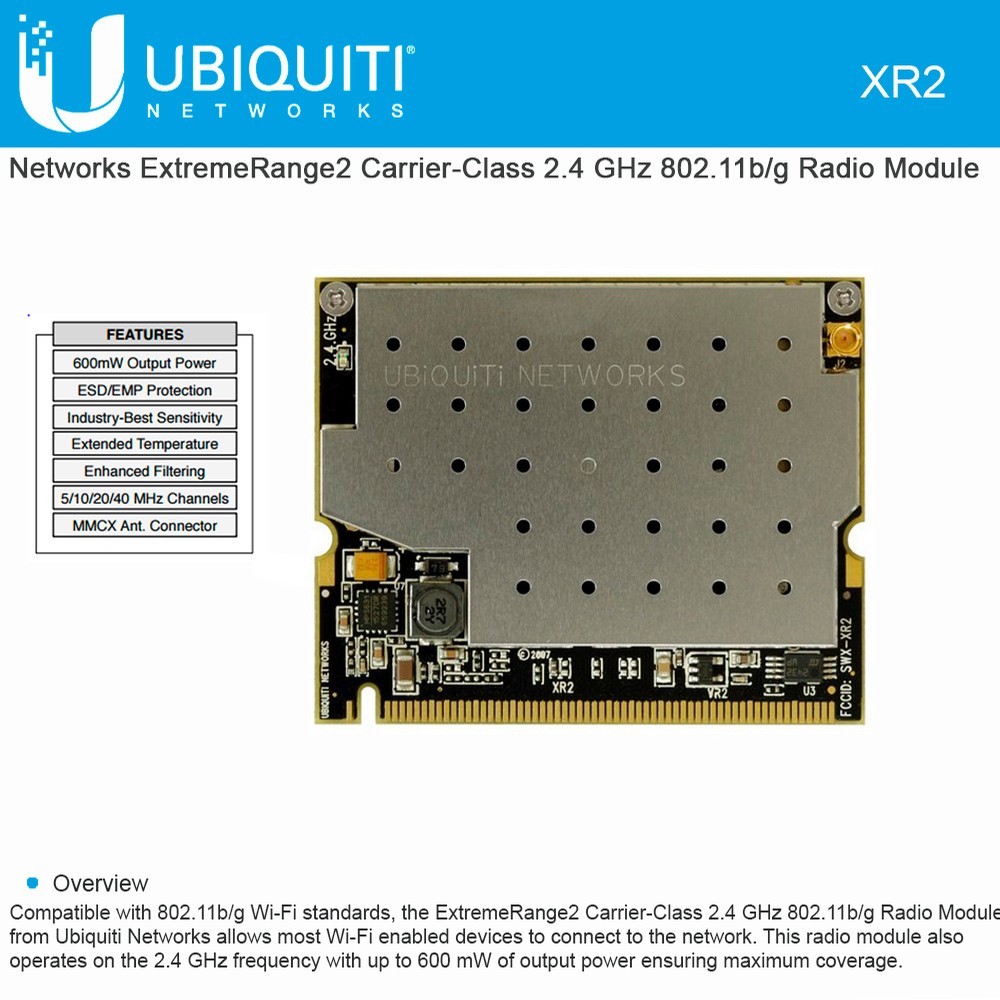

Compatible with 802.11b/g Wi-Fi standards, the ExtremeRange2 Carrier-Class 2.4 GHz 802.11b/g Radio Module from Ubiquiti Networks allows most Wi-Fi enabled devices to connect to the network. This radio module also operates on the 2.4 GHz frequency with up to 600 mW of output power ensuring maximum coverage. Once installed the multi-faceted ExtremeRage2 module can be configured to mesh, bridging, and infrastructure modes to suit the needs of a variety of networking environments.

  • 600mW output power
  • ESD/EMP protection
  • Enhanced sensitivity
  • Extended temperature
  • Enhanced filtering
  • 5/10/20/40 MHz channels
  • MMCX ant. connector
  • Chipset Atheros, 6th Generation, AR5414

  • Radio Operation IEEE 802.11b/g, 2.4GHz

  • Interface 32-bit mini-PCI Type IIIA

  • Operation Voltage 3.3VDC

  • Antenna Ports Single MMCX

  • Temperature Range -45C to +90C (extended temp version up to +95C)

  • Security WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP

  • Data Rates 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps

  • TX Channel Width Support 5MHz / 10MHz / 20MHz / 40MHz

  • RoHS Compliance YES
