GXP1620-BD6

Grandstream

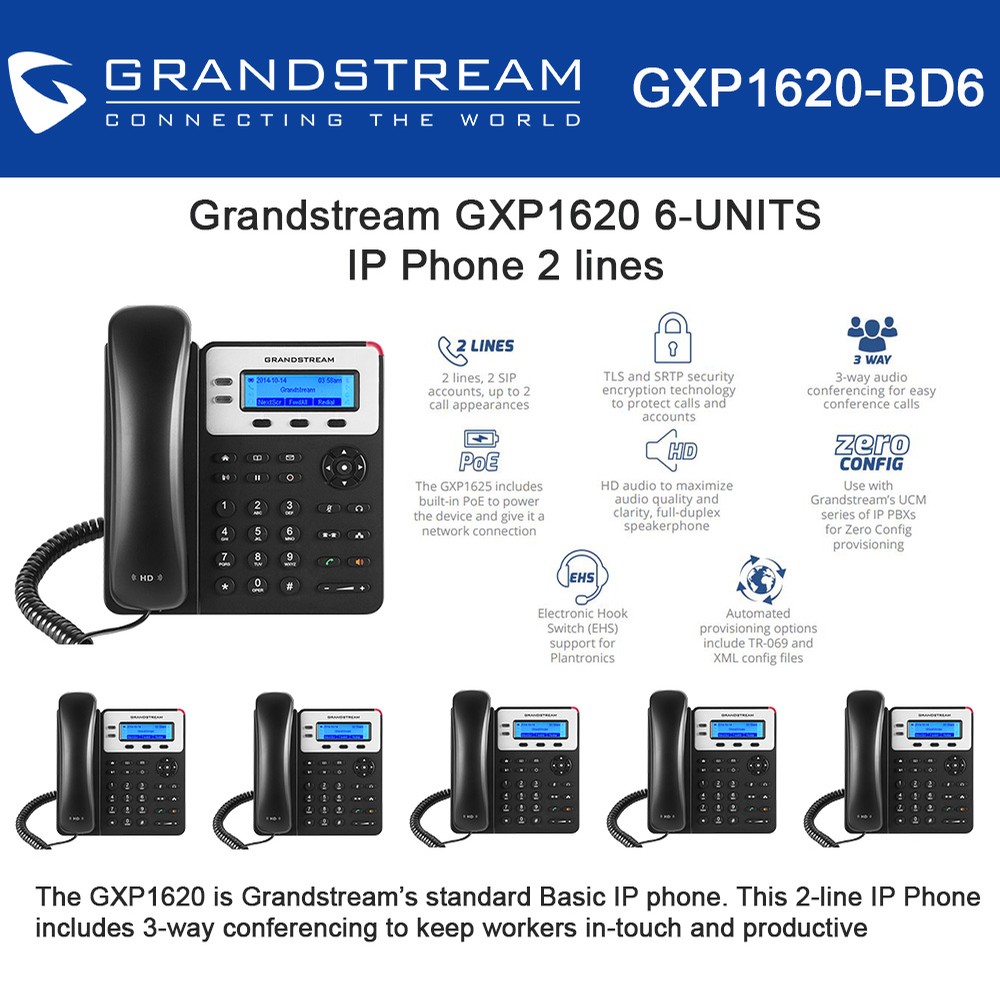

Grandstream 6 units GXP1620 IP Phone VoIP Phone business VoIP solution



Product Highlights
  • A reliable Basic IP phone, the GXP1620 delivers a suite of powerful VoIP features in an easy-to-use fashion with a modern design.
  • The GXP1620 offers support for up to 2 lines and features full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity.
  • Additional features include 3-way conferencing to maximize productivity, 3 XML programmable soft keys for customization and EHS support for Plantronics headsets.
  • These features allow the GXP1620 to be a high-quality and easy-to-use Basic IP phone.
  • The GXP1620 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
  • Model#: GXP1620-BD6

    Sku: IT1096

    Out of stock

    A reliable Basic IP phone, the GXP1620 delivers a suite of powerful VoIP features in an easy-to-use fashion with a modern design. The GXP1620 offers support for up to 2 lines and features full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity. Additional features include 3-way conferencing to maximize productivity, 3 XML programmable soft keys for customization and EHS support for Plantronics headsets. These features allow the GXP1620 to be a high-quality and easy-to-use Basic IP phone.

    • The GXP1620 is Grandstream's standard IP phone for small businesses, this Linux-based model includes 2 lines, 3 XML programmable soft keys, and 3-way conferencing.

    • The GXP1620 phone is include dual 10/100M network ports.

    • The GXP1620 also supports multi-language and call-waiting.

    • 132 X 48 pixel backlit graphical LCD display.

    • 2 dual-color line keys (with 2 SIP accounts and up to 2 call appearances), 3 XML programmable context-sensitive soft keys, 3-way conference

    • HD wideband audio, superb full-duplex hands-free speakerphone with advanced acoustic echo cancellation and excellent double-talk performance.

    • 2 dual-color line keys (with 2 SIP accounts and up to 2 call appearances), 3 XML programmable context-sensitive soft keys, 3-way conferencing, multi-language support

    • Automated personal information service (e.g., local weather, etc.), personalized music ring tone/ring back tone, customizable screen content/format using XML, advanced web and enterprise applications integration (pending)

    • Dual-switched 10/100 Mbps ports, integrated PoE on GXP1625

    • Use with Grandstream’s UCM6100 series IP PBX appliance for Zero-Config provisioning, 1-touch call recording and more

    • HD wideband audio, superb dull-duplex hands-free speakerphone with advanced acoustic echo cancellation and excellent double-talk performance

    • Automated provisioning using TR-069 or encrypted XML configuration file, SRTP and TLS for advanced security protection, 802.1x for media access control

    • 132 x 48 pixel backlit graphical LCD display

    • Large phonebook (up to 500 contacts) and call history (up to 200 records)

    • Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP

    • Network Interfaces: Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GXP1625 only)

    • Graphic Display: 132 x 48 backlit graphical LCD display

    • Feature Keys: 2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME

    • Voice Codecs: Support for G.711µ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

    • Telephony Features: Hold, transfer, forward (unconditional/no-answer/busy), 3-way conferencing, call park/pickup, shared-call appearance (SCA) / bridged-line-appearance (BLA), Downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over

    • Headset Jack: RJ9 headset jack (allowing EHS with Plantronics headsets)

    • HD Audio: Yes, HD handset and speakerphone with support for wideband audio

    • Base Stand: Yes, 2 angled positions available, wall mountable

    • Wall Mountable: Yes

    • QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

    • Security: User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

    • Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more

    • Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file

    • Power & Green Energy Efficiency: Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA PoE: ieee802.3af Class 2, 3.84W-6.49W (GXP1625 only)

    • Physical: Dimension: 209mm (L) x 184.5mm (W) x 76.2mm (H) (with handset) Unit weight: 0.73kg; Package weight: 1.1kg

    • Temperature and Humidity: Operation: 0°C to 40°C, Storage: -10°C to 60°C , Humidity: 10% to 90% Non-condensing

    • Package Content: GXP1620/1625 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, brochure, GPL License

    • Compliance: FCC: Part 15 (CFR 47) Class B CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1
